Homepage TOOLS Cordless Tools Cordless Tools XGT (40V / 40Vx2) Impact Wrenches XGT (40V / 40Vx2) 40VMax Impact Wrench XGT®
New product
3 year warranty
  • New
    40VMax Impact Wrench XGT®

40VMax Impact Wrench XGT®

TW011G
3/4", 1 500 Nm, 0 – 1 800 min⁻¹

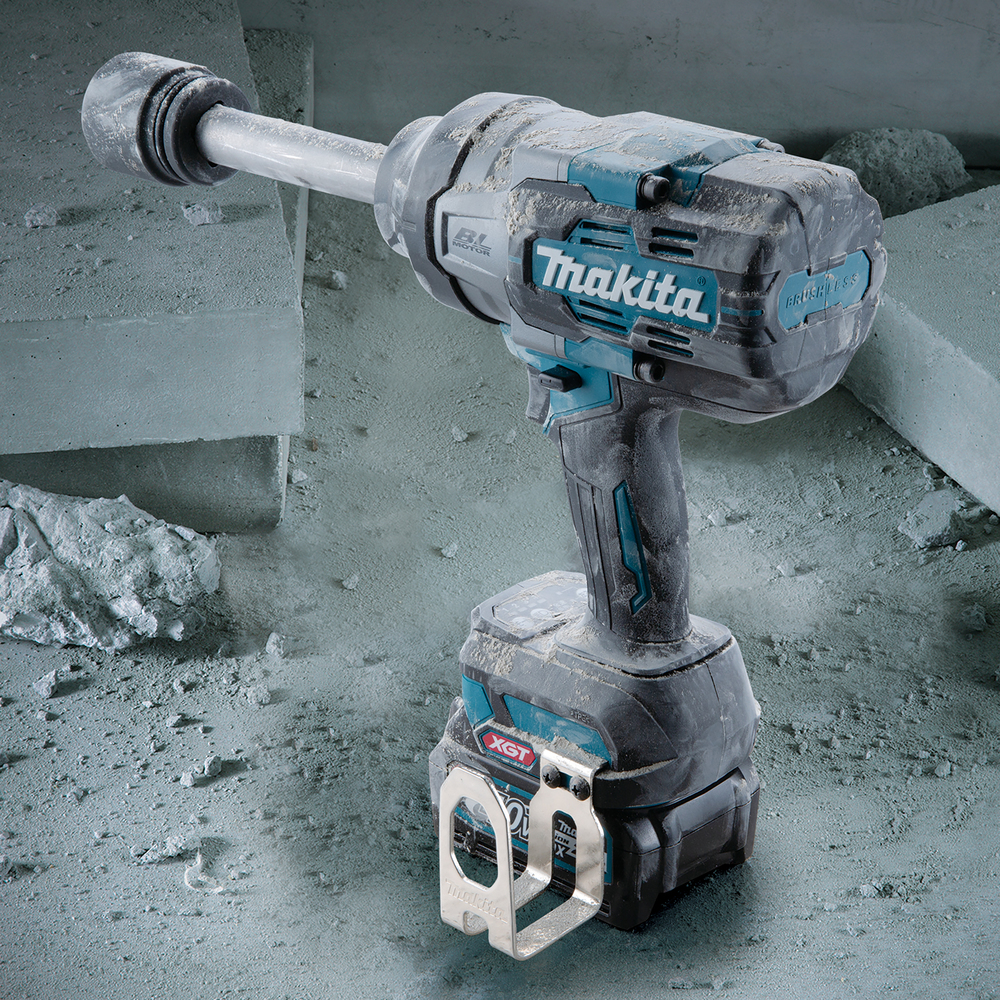

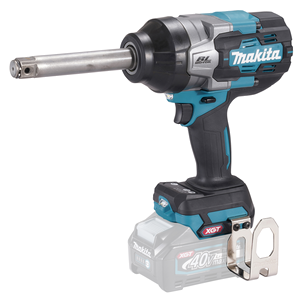

Model TW011G is an Impact Wrench, High power, equipped with a long anvil and powered by a 40VMax XGT Li-Ion battery.
Main feature and benefits:
  • Tip shape: Long anvil with 19mm (3/4") Square drive
  • Style of socket retention: C ring (with a hole)
  • Electronic 4-stage impact power selection
  • Constant speed control
    • Available version(s)
    • General
    • Technical info
    • Related Products
    • Parts diagram
    • Dust Extraction
    • Additional info
    • Support

    Available version(s)

    1 Available version
    New product
    TW011GZ01 40VMax Impact Wrench XGT®
    Barcode:
    0197050010759
    Display contents

    General

    Next Generation Technology
    Brushless Motor

    User benefits

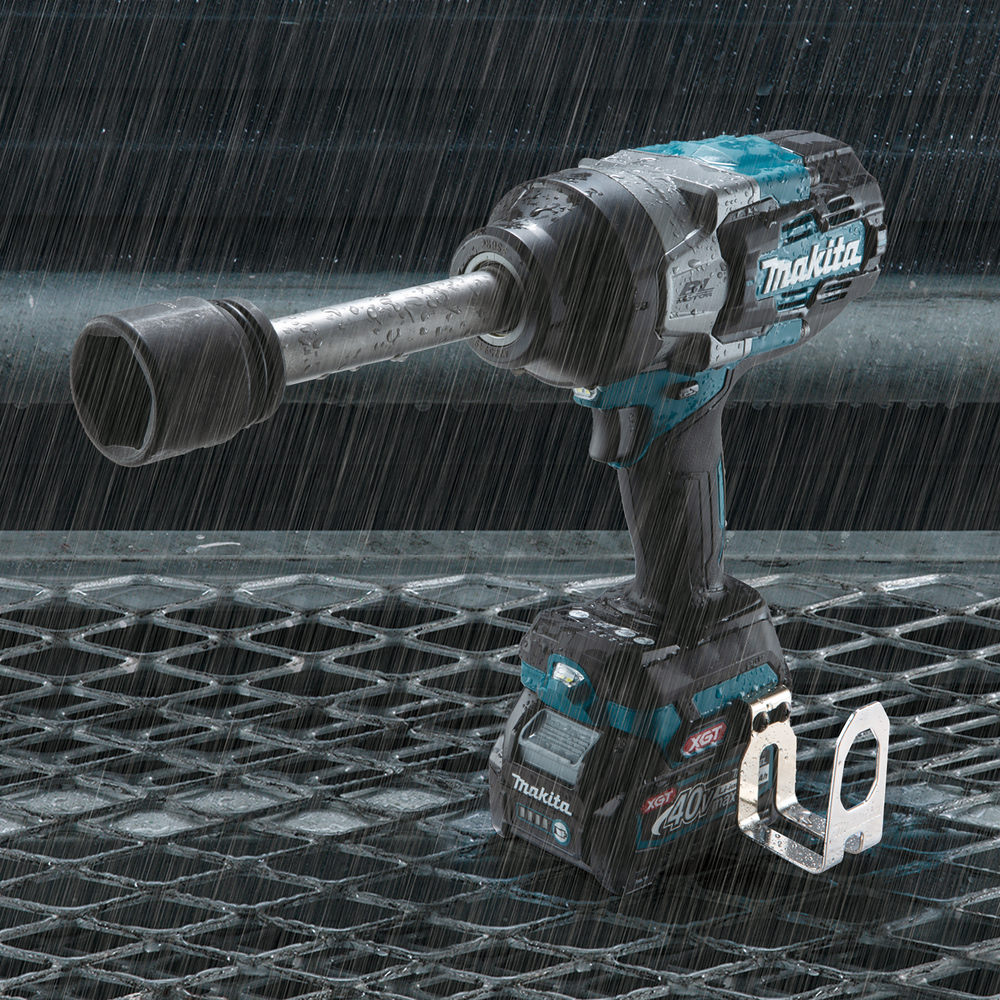

    • eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
    • Electronic 4 stage impact power selection for added versatility
    • Brushless maintenance-free and long-life motor
    • Ergonomic soft grip handle provides increased comfort

    Technical info

    Technical specifications

    • Voltage XGT
    • Nominal Battery Voltage
      40 V
    • Brushless Motor
    • No load speed
      0 - 500 / 700 / 1100 / 1800 min⁻¹
    • Max Fastening Torque Impact Drill
      1500 Nm
    • Nut-busting torque
      1900 Nm
    • Tightening Capacity Standard Bolt
      M12 - M36
    • Tightening Capacity High Tensile Bolt
      M10 - M27
    • Impacts per Minute (IPM)
      0 - 1400 / 2000 / 2600 min⁻¹
    • Drive Square
      3/4 "
    • Sound Power Level (LWA)
      112 dB(A)
    • Sound Pressure Level (LpA)
      104 dB(A)
    • Noise Uncertainty (K Factor)
      3 dB(A)
    • Tool weight with battery
      4,3 - 5,5 kg
    • Product Dimensions (L x W x H):
      329 x 94 x 303 mm

      Product dimensions are stated with a battery / batteries, if they affect the overall dimensions of the product.

      - CXT® machines with 2,0Ah batteries
      - LXT® machines with 6,0Ah batteries
      - XGT® machines with 4,0Ah batteries
    • Vibration Level, Impact Tightening of Fasteners of the Maximum Capacity of the Tool
      15,6 m/s²
    • Vibration Uncertainty (K Factor), Impact Tightening of Fasteners of the Maximum Capacity of the Tool
      2,4 m/s²

    Barcode

    Symbols:

    Variable Speed

    Brake

    Reversing

    Electronic 4-Speed

    Constant speed

    Built-in Job Light
