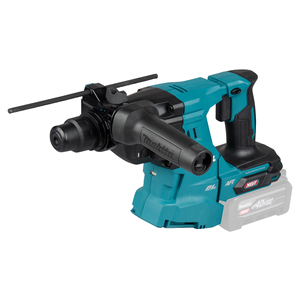

    Rotary Hammer XGT®,

Rotary Hammer XGT®,

HR011G
40Vmax, SDS-PLUS, 28 mm, 3,3 J
Model HR011G is 28mm (1-1/8") SDS-plus Rotary Hammer powered by a 40Vmax XGT Li-Ion battery.
Designed to be smaller even when the DX17 dust collection is attached. Features Active feedback sensing technology (AFT), Antivibration technology (AVT), Auto wireless system (AWS).
  • Available version(s)
  • General
  • Technical info
  • Related Products
  • Parts diagram
  • Dust Extraction
  • Additional info
  • Support

Available version(s)

1 Available version
New product
HR011GZ03 Rotary Hammer XGT®,
Barcode:
0197050013989
Display contents

General

Next Generation Technology
Brushless Motor
AFT
Anti Vibration Technology
Auto-Start Wireless System

User benefits

  • 3-Mode operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only" for multiple applications
  • Constant speed control maintains constant speed under load
  • AVT (Anti-Vibration Technology) ensures extra-low vibration performance
  • Active Feedback sensing Technology (AFT) stops the engine if the rotation suddenly stops
  • Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
  • Low power consumption thanks to brushless motor
  • eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions

Technical info

Technical specifications

  • Nominal Battery Voltage
    40 V
  • Voltage XGT
  • Brushless Motor
  • Battery Chemistry (Ni-Cd / Ni-MH / Li-ion)
    Li-ion
  • No load speed
    0 - 1130 min⁻¹
  • Impacts per Minute (IPM)
    0 - 5000 min⁻¹
  • Max. Drilling Diameter in Wood
    32 mm
  • Max. Drilling Diameter in Concrete
    28 mm
  • Max. Drilling Diameter in Steel
    13 mm
  • Optimum Drilling Diameter Range in Concrete
    6 - 20 mm
  • Impact Energy
    3,3 J
  • Drilling diameter with TCT core bit
    68 mm
  • Electronic brake
  • AWS ready
  • Sound Power Level (LWA)
    105 dB(A)
  • Sound Pressure Level (LpA)
    97 dB(A)
  • Noise Uncertainty (K Factor)
    3 dB(A)
  • Tool weight with battery
    3,8 - 5,5 kg
  • Product Dimensions (L x W x H):
    391 x 104 x 223 mm

    Product dimensions are stated with a battery / batteries, if they affect the overall dimensions of the product.

    - CXT® machines with 2,0Ah batteries
    - LXT® machines with 6,0Ah batteries
    - XGT® machines with 4,0Ah batteries
  • Vibration Level, Chiselling
    7,3 m/s²
  • Vibration Uncertainty (K Factor), Chiselling
    1,5 m/s²
  • Vibration Level, Hammer Drilling Into Concrete
    10,5 m/s²
  • Vibration Uncertainty (K Factor), Hammer Drilling Into Concrete
    1,5 m/s²
  • Adapted for SDS-PLUS bits
  • Product net weight
    3,1 kg

Barcode

Symbols:

Brake

Reversing

Anti-restart function

Electronic 4-Speed

SDS-PLUS Shank

Torque limiter

Constant speed

Dust Collection

Built-in Job Light
