Available version(s)
3 Available version

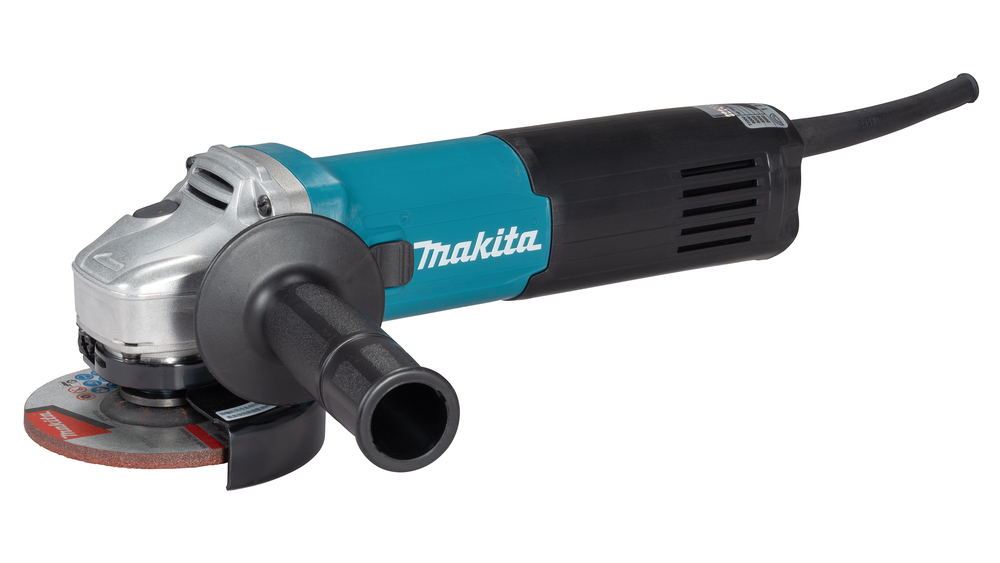

GA4100
Angle Grinder
Model GA4100 is an Angle Grinder wheel size 100mm, slide switch
GA4100/1
Angle Grinder
Model GA4100 is an Angle Grinder wheel size 100mm, slide switch
GA4100/2
Angle Grinder
Model GA4100 is an Angle Grinder wheel size 100mm, slide switch
General
User benefits
- Anti-restart function minimises accidental start-up
- Soft start for smooth start-ups
- Side grip can be positioned on both sides for operator convenience
- Constant speed control maintains constant speed under load
- Variable speed control dial enables user to match the speed to the application for greater versatility
Technical info
Technical specifications
-
Continuous Input Power 240V850 W
-
No load speed2800 - 11000 min⁻¹
-
Spindle ThreadM10
-
Disc Diameter100 mm
-
Anti-Restart Function (NVR Switch)
-
Power Supply Cord2,5 m
-
Sound Power Level (LWA)96 dB(A)
-
Sound Pressure Level (LpA)88 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Weight Without Cable2,0 kg
-
Product Dimensions (L x W x H):298 x 118 x 105 mmProduct dimensions are stated with a battery / batteries, if they affect the overall dimensions of the product.- CXT® machines with 2,0Ah batteries- LXT® machines with 6,0Ah batteries- XGT® machines with 4,0Ah batteries
-
Max Output Power1000 W
-
Max. Depth of Cut20 mm
-
Bore Size (Arbor Diameter)16 mm
-
Vibration Level, Disc Sanding≤ 2,5 m/s²
-
Vibration Uncertainty (K Factor), Disc Sanding1,5 m/s²
-
Vibration Level, Surface Grinding6,8 m/s²
-
Vibration Uncertainty (K Factor), Surface Grinding1,5 m/s²
Symbols:
Double Insulation
Variable Speed
Anti-restart function
Constant speed
Soft Start
