Flat-head Angle Grinder XGT®
GA055G40Vmax, 125 mm, 3000 - 9000 min⁻¹

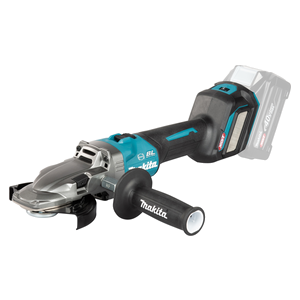

Model GA055G is a 125mm flat head angle grinder powered by a 40V Max XGT Li-Ion battery.
Features a Slide Switch. Reduced access angle at the tip enables excellent workability for deburring in confined or recessed areas. Equipped with a newly designed tool-less wheel cover for flat head angle grinders, allowing access at angles as small as 39°
- Available version(s)
- General
- Technical info
- Related Products
- Parts diagram
- Dust Extraction
- Additional info
- Support
Available version(s)
1 Available version
GA055GZ01
Flat-head Angle Grinder XGT®
Model GA055G is a 125mm flat head angle grinder powered by a 40V Max XGT Li-Ion battery.
General
User benefits
- Slide switch with lock-on for continuous use
- Active Feedback sensing Technology (AFT) stops the engine if the rotation suddenly stops
- Anti-restart function minimises accidental start-up
- Electric brake for maximum productivity and increased operator safety
- eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
- Soft start for smooth start-ups
- Battery protection system automatically shuts off power when the battery level is low
Technical info
Technical specifications
-
Nominal Battery Voltage40 V
-
Voltage XGT
-
Brushless Motor
-
No load speed3000 - 9000 min⁻¹
-
Disc Diameter125 mm
-
Anti-Restart Function (NVR Switch)
-
Electronic brake
-
Sound Power Level (LWA)91 dB(A)
-
Sound Pressure Level (LpA)83 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion)Li-ion
-
Tool weight with battery3,1 - 4,4 kg
-
Product Dimensions (L x W x H):483 x 140 x 136 mmProduct dimensions are stated with a battery / batteries, if they affect the overall dimensions of the product.- CXT® machines with 2,0Ah batteries- LXT® machines with 6,0Ah batteries- XGT® machines with 4,0Ah batteries
-
Max. Depth of Cut30 mm
-
Product net weight2,4 kg
-
Vibration Level, Disc Sanding≤ 2,5 m/s²
-
Vibration Uncertainty (K Factor), Disc Sanding1,5 m/s²
-
Vibration Level, Surface Grinding5,0 m/s²
-
Vibration Uncertainty (K Factor), Surface Grinding1,5 m/s²
Symbols:
Variable Speed
Brake
Anti-restart function
Soft Start
