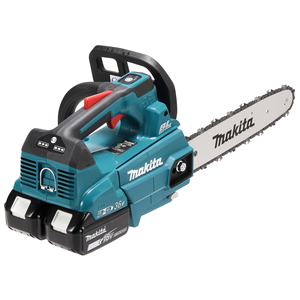

Chainsaw LXT®
DUC306- Available version(s)
- General
- Technical info
- Related Products
- Parts diagram
- Dust Extraction
- Additional info
- Support
Available version(s)
General
User benefits
- Low vibration and low noise level
- Compact and lightweight for reduced operator fatigue
- Adjustable automatic chain lubrication with large oil reservoir
- Lock-off button prevents accidental startup
- Battery protection system automatically shuts off power when the battery level is low
Technical info
Technical specifications
-
Nominal Battery Voltage2 x 18 V
-
Max. Chain Speed (No Load)20 / 20,6 m/s
-
Chain Pitch3/8 / 0,325 "
-
Chain Gauge0,043 / 0,050 "
-
Chain Gauge1,1 / 1,3 mm
-
Number of Drive Links46 / 51
-
Chain Oil Tank0,2 L
-
Sound Power Level (LWA)103 dB(A)
-
Sound Pressure Level (LpA)95 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Vibration Level (3 axes)3,2 m/s²
-
Vibration Uncertainty (K Factor)1,5 m/s²
-
Tool weight with battery4,6 - 5,1 kg
-
Product Dimensions (L x W x H):270 x 205 x 232 mm
Product dimensions are stated with a battery / batteries, if they affect the overall dimensions of the product.
- CXT® machines with 2,0Ah batteries
- LXT® machines with 6,0Ah batteries
- XGT® machines with 4,0Ah batteries -
Brushless Motor
-
Voltage LXT
-
Bar Size300 (12") mm
-
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion)Li-ion
-
Chain Speed at Max. Power20,0 / 20,6 m/s
-
Vibration Level (3 axes), Cutting Wood3,6 m/s²
-
Product net weight2,8 kg
Symbols:
Variable Speed
Brake
Soft Start
Automatic Oiling
Chain Brake
