New

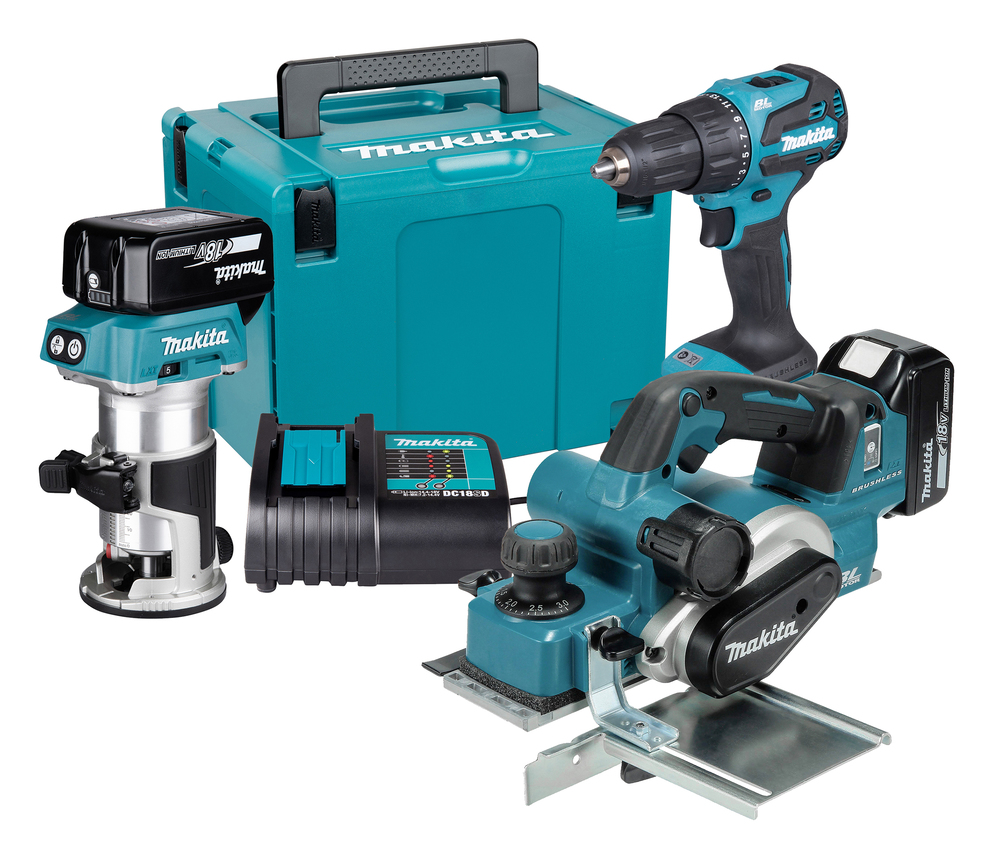

3 Piece Combo Kit LXT
DLX3193TJ18V
Includes: DHP490 Combi Drill, DRT502 Router Trimmer and DKP181 Planer
- Available version(s)
- General
- Technical info
- Related Products
- Parts diagram
- Dust Extraction
- Additional info
- Support
Available version(s)
General
Standard accessories
Standard machines
Technical info
Technical specifications
-
Nominal Battery Voltage18 V
-
Voltage LXT
-
Number of Batteries Supplied2
-
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion)Li-ion
DHP490:
Nominal Battery Voltage:
18 V
Voltage LXT:
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion):
Li-ion
Brushless Motor:
No load speed:
0 - 500 / 1900 min⁻¹
Max. fastening torque Hard/Soft:
50 / 27 Nm
Max Torque:
65 Nm
Torque setting:
20
Impacts per Minute (IPM):
0 - 7500 / 28500 min⁻¹
Max. Drilling Diameter in Wood:
38 mm
Max. Drilling Diameter in Masonry:
13 mm
Max. Drilling Diameter in Steel:
13 mm
Drilling Capacity Wood (Auger Bit):
38 mm
Drilling Capacity Wood (Self-feed bit):
38 mm
Drilling Capacity Flat bit:
40 mm
Drilling Capacity Hole Saw:
51 mm
Driving Shank:
1/2"-20UNF "
Drill Chuck Capacity:
1,5 - 13 mm
Electronic brake:
Vibration Level, Drilling into metal:
≤ 2,5 m/s²
Vibration Uncertainty (K Factor), Drilling into metal:
1,5 m/s²
Vibration Level, Impact Drilling into Concrete:
8,1 m/s²
Vibration Uncertainty (K Factor), Impact Drilling into Concrete:
1,5 m/s²
Sound Power Level (LWA):
96 dB(A)
Sound Pressure Level (LpA):
88 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Product Dimensions (L x W x H)::
172 x 81 x 255 mm
Tool weight with battery:
1,4 - 1,7 kg
Product net weight:
1,0 kg
:
1,7 kg
DKP181:
Nominal Battery Voltage:
18 V
Voltage LXT:
Brushless Motor:
No load speed:
12000 min⁻¹
Planing Width:
82 mm
Chip Thickness (Planing Depth):
0 - 3 mm
Max. Shiplapping Depth:
25 mm
AWS ready:
Sound Power Level (LWA):
95 dB(A)
Sound Pressure Level (LpA):
84 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Tool weight with battery:
3,3 - 3,6 kg
Product Dimensions (L x W x H)::
366 x 156 x 166 mm
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion):
Li-ion
Vibration Level, Planing Softwood:
5,0 m/s²
Vibration Uncertainty (K Factor), Planing Softwood:
2,5 m/s²
Vacuum cleaner connection Ø in / out:
45/50 mm
