New

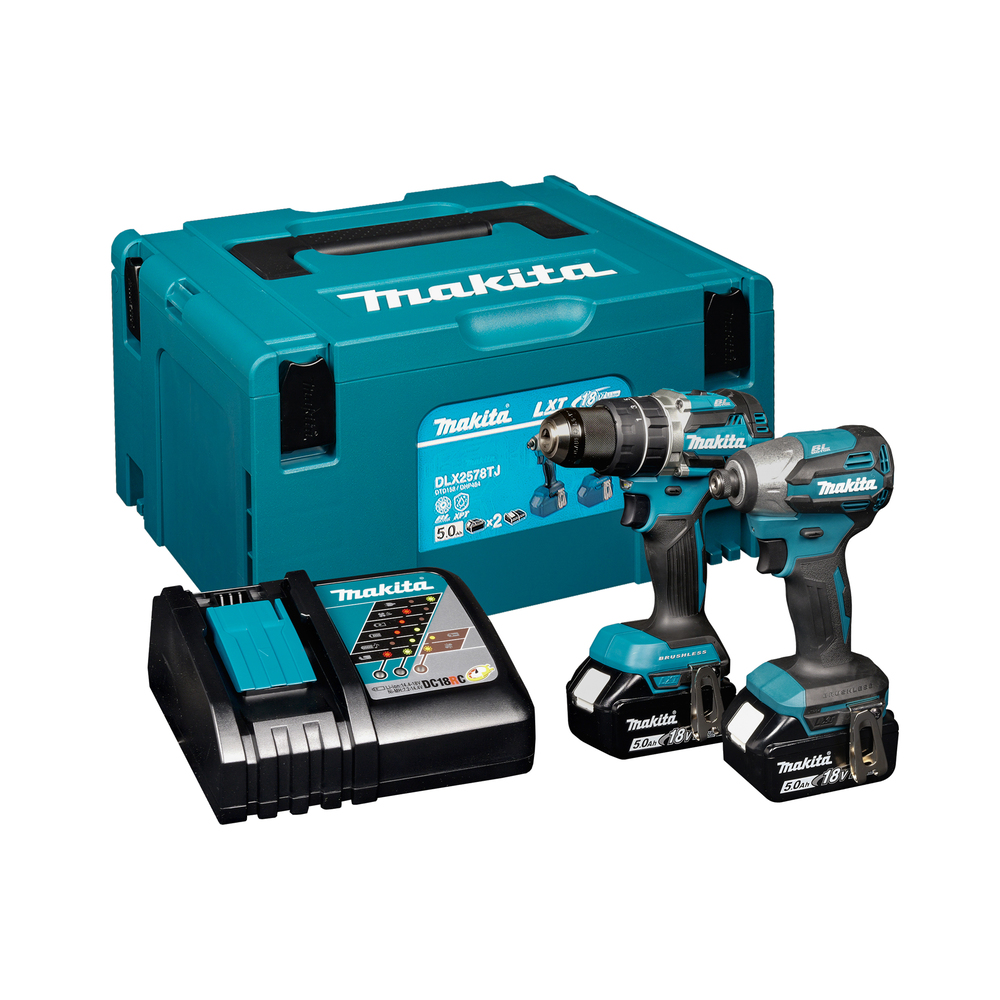

2 Piece Combo Kit LXT®,
DLX2578TJ 18V
Includes DHP484 Combi Drill and DTD158 Impact Driver
- Available version(s)
- General
- Technical info
- Related Products
- Parts diagram
- Dust Extraction
- Additional info
- Support
Available version(s)
General
Standard accessories
Standard machines
Technical info
Technical specifications
-
Nominal Battery Voltage18 V
-
Voltage LXT
-
Number of Batteries Supplied2
DHP484:
Nominal Battery Voltage:
18 V
Voltage LXT:
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion):
Li-ion
Brushless Motor:
Electronic brake:
No load speed:
0 - 500 / 2000 min⁻¹
Max. fastening torque Hard/Soft:
54 / 30 Nm
Max Torque:
65 Nm
Torque setting:
21
Impacts per Minute (IPM):
0 - 7500 / 30000 min⁻¹
Max. Drilling Diameter in Masonry:
13 mm
Max. Drilling Diameter in Concrete:
13 mm
Max. Drilling Diameter in Steel:
13 mm
Drilling Capacity Wood (Auger Bit):
38 mm
Drilling Capacity Wood (Self-feed bit):
38 mm
Drilling Capacity Flat bit:
38 mm
Drilling Capacity Hole Saw:
51 mm
Driving Shank:
1/2"-20UNF "
Drill Chuck Capacity:
1,5 - 13 mm
Vibration Level, Drilling into metal:
≤ 2,5 m/s²
Vibration Uncertainty (K Factor), Drilling into metal:
1,5 m/s²
Vibration Level, Impact Drilling into Concrete:
8,0 m/s²
Vibration Uncertainty (K Factor), Impact Drilling into Concrete:
1,5 m/s²
Sound Power Level (LWA):
99 dB(A)
Sound Pressure Level (LpA):
91 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Product Dimensions (L x W x H)::
182 x 79 x 261 mm
Tool weight with battery:
1,6 - 2,2 kg
Product net weight:
1,2 kg
DTD158:
Voltage LXT:
Nominal Battery Voltage:
18 V
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion):
Li-ion
Brushless Motor:
No load speed:
0 - 3400 min⁻¹
Max Fastening Torque Impact Drill:
170 Nm
Impacts per Minute (IPM):
0 - 3600 min⁻¹
Tightening Capacity Standard Bolt:
M5 - M16
Capacity machine screw:
M4 - M8
Tightening Capacity High Tensile Bolt:
M5 - M14
Driving Shank:
1/4 "
Sound Power Level (LWA):
105 dB(A)
Sound Pressure Level (LpA):
97 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Vibration Level, Impact Tightening of Fasteners of the Maximum Capacity of the Tool:
10,9 m/s²
Vibration Uncertainty (K Factor), Impact Tightening of Fasteners of the Maximum Capacity of the Tool:
2,0 m/s²
Overall Length:
125 mm
Product Dimensions (L x W x H)::
125 x 81 x 251 mm
Tool weight with battery:
1,3 - 1,6 kg
Product net weight:
0,90 kg
Symbols:
Carrying case
