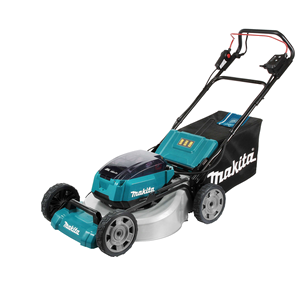

Lawn Mower LXT®

DLM532

18V X2 • 53 cm • 70 L

Strong steel frame driven cordless lawnmower.

Model DLM532 is a 530mm (21") cordless Self-Propelled lawn mower powered by two 18V LXT® Li-Ion batteries in series. Features cutting, collecting or mulching. Centralised cutting height adjustment and ball-bearing wheels. Two cutting modes are available (Standard mode and Low noise mode). Equipped with side discharge. Recommended cutting area of 1,700 - 2,300 m².

Available version(s)

General

Technical info

Available version(s)

3 Available version

DLM532PG2 Lawn Mower LXT®

Barcode:

0088381724265

Display contents

Strong steel frame driven cordless lawnmower.

DLM532PT4 Lawn Mover LXT®

Barcode:

0088381894593

Display contents

Strong steel frame driven cordless lawnmower.

DLM532Z Lawn Mower LXT®

Barcode:

0088381894579

Display contents

Strong steel frame driven cordless lawnmower.


Lawn Mower LXT® DLM532
Rod, 6 Mm 327589-6
Side Discharge Mouth 459887-1
Socket Wrench 17 782210-8
Socket Wrench 13 mm 782212-4
Battery LXT® 5,0 Ah BL1850B
Battery LXT® 6.0 Ah BL1860B
Battery Charger LXT® DC18RD

General

User benefits

Height adjustment with one handle
IPX4 rating, splash proof
36V performance from two 18V batteries connected in series. The batteries are placed in parallel in separate battery docking stations.
Battery protection circuit protects against overloading, over-discharging and over-heating
Large tyres enlarge the ground contact area to sustain higher performance in running over muddy or bumpy yard
Optimum blade design for less rotational speed reduction of the blade

Technical info

Technical specifications

Nominal Battery Voltage

2 x 18 V

Voltage LXT

Battery Chemistry (Ni-Cd / Ni-MH / Li-ion)

Li-ion

Brushless Motor

No load speed

2300 - 2800 min⁻¹

Cutting height positions

Width of Mowing Deck

53,4 cm

Mowing Height

20 - 100 mm

Rear Wheel Diameter

23 cm

Front Wheel Diameter

23 cm

Collecting Box Capacity

70 L

Propelling Speed

2,5 - 5,0 km/h

Self-Propelled

RPM (Soft no load mode)

2300 / 2800 min⁻¹

RPM (noise reduction mode)

2300 min⁻¹

Actual mowing area 6,0 Ah x 4

1700 - 2300 m²

If the product has different work modes Push Drive and Self-Propelled the value is shown as Self-Propelled – Push Drive. The result of mowing area depends on speed, blade, grass height and density and the cutting height.

Sound Power Level (L_WA)

91,9 dB(A)

Sound Pressure Level (L_pA)

80,9 dB(A)

Vibration Level (3 axes)

≤ 2,5 m/s²

Vibration Uncertainty (K Factor)

1,5 m/s²

Product Dimensions (L x W x H):

1630 - 1715 x 590 x 990 - 1095 mm

Product dimensions are stated with a battery / batteries, if they affect the overall dimensions of the product.
