New

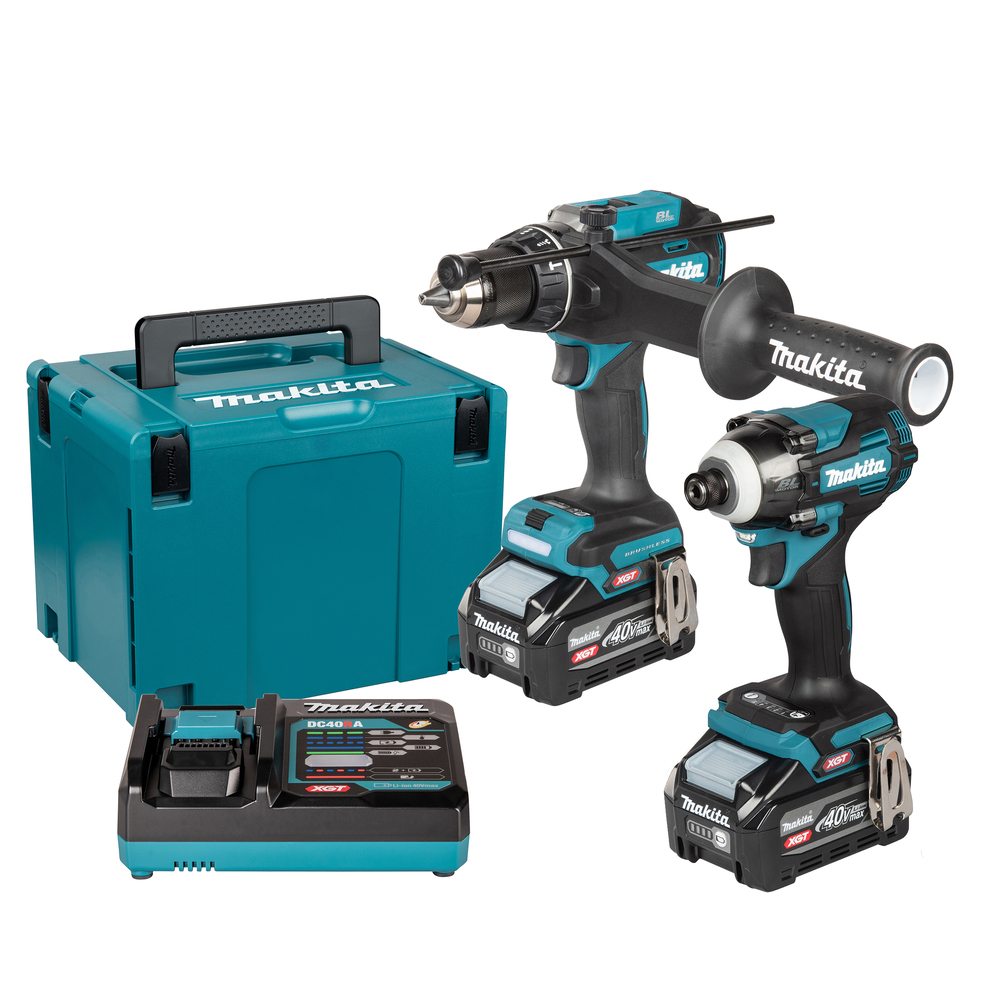

2 Piece Combo Kit XGT®,
DK0249G20140Vmax
Includes: HP003G Combi Drill and TD004G Impact Driver
- Available version(s)
- General
- Technical info
- Related Products
- Parts diagram
- Dust Extraction
- Additional info
- Support
Available version(s)
General
Standard accessories
Standard machines
Technical info
Technical specifications
-
Nominal Battery Voltage40 V
-
Voltage XGT
-
Number of Batteries Supplied2
HP003G:
Nominal Battery Voltage:
40 V
Voltage XGT:
Brushless Motor:
No load speed:
0 - 650 / 1800 / 2400 min⁻¹
Max. fastening torque Hard/Soft:
150 / 88 Nm
Torque setting:
41 / 30 / 25
Impacts per Minute (IPM):
0 - 9750 / 27000 / 36000 min⁻¹
Max. Drilling Diameter in Masonry:
20 mm
Max. Drilling Diameter in Steel:
20 mm
Drill Chuck Capacity:
1,5 - 13 mm
Sound Power Level (LWA):
96 dB(A)
Sound Pressure Level (LpA):
88 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Tool weight with battery:
2,8 - 4,0 kg
Product Dimensions (L x W x H)::
197 x 86 x 284 mm
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion):
Li-ion
Max Torque:
180 Nm
Drilling Capacity Wood (Auger Bit):
50 mm
Drilling Capacity Wood (Self-feed bit):
92 mm
Drilling Capacity Flat bit:
40 mm
Drilling Capacity Hole Saw:
152 mm
Electronic brake:
Product net weight:
2,1 kg
Vibration Level, Drilling into metal:
2,1 m/s²
Vibration Uncertainty (K Factor), Drilling into metal:
1,5 m/s²
Vibration Level, Impact Drilling into Concrete:
6,8 m/s²
Vibration Uncertainty (K Factor), Impact Drilling into Concrete:
1,5 m/s²
TD004G:
Nominal Battery Voltage:
40 V
Voltage XGT:
Brushless Motor:
No load speed:
0 - 1200 / 2100 / 3000 / 3900 min⁻¹
Max Fastening Torque Impact Drill:
60 / 130 / 210 / 230 Nm
Tightening Capacity Standard Bolt:
M5 - M20
Capacity machine screw:
M4 - M8
Tightening Capacity High Tensile Bolt:
M5 - M14
Impacts per Minute (IPM):
0 - 1900 / 3100 / 3600 / 3900 min⁻¹
Sound Power Level (LWA):
108 dB(A)
Sound Pressure Level (LpA):
100 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Tool weight with battery:
1,8 - 3,1 kg
Product Dimensions (L x W x H)::
136 x 86 x 248 mm
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion):
Li-ion
Driving Shank:
1/4 "
Product net weight:
1,1 kg
Vibration Level, Impact Tightening of Fasteners of the Maximum Capacity of the Tool:
23,5 m/s²
Vibration Uncertainty (K Factor), Impact Tightening of Fasteners of the Maximum Capacity of the Tool:
1,5 m/s²
