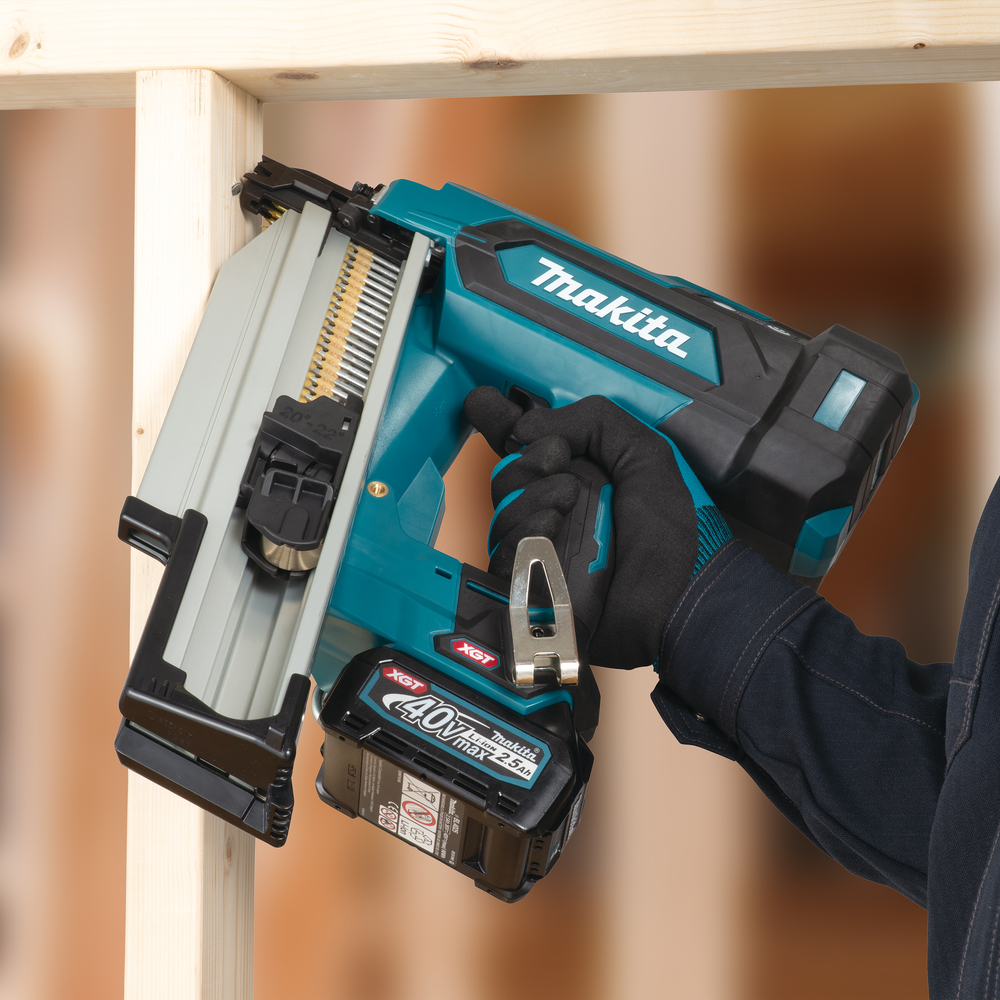

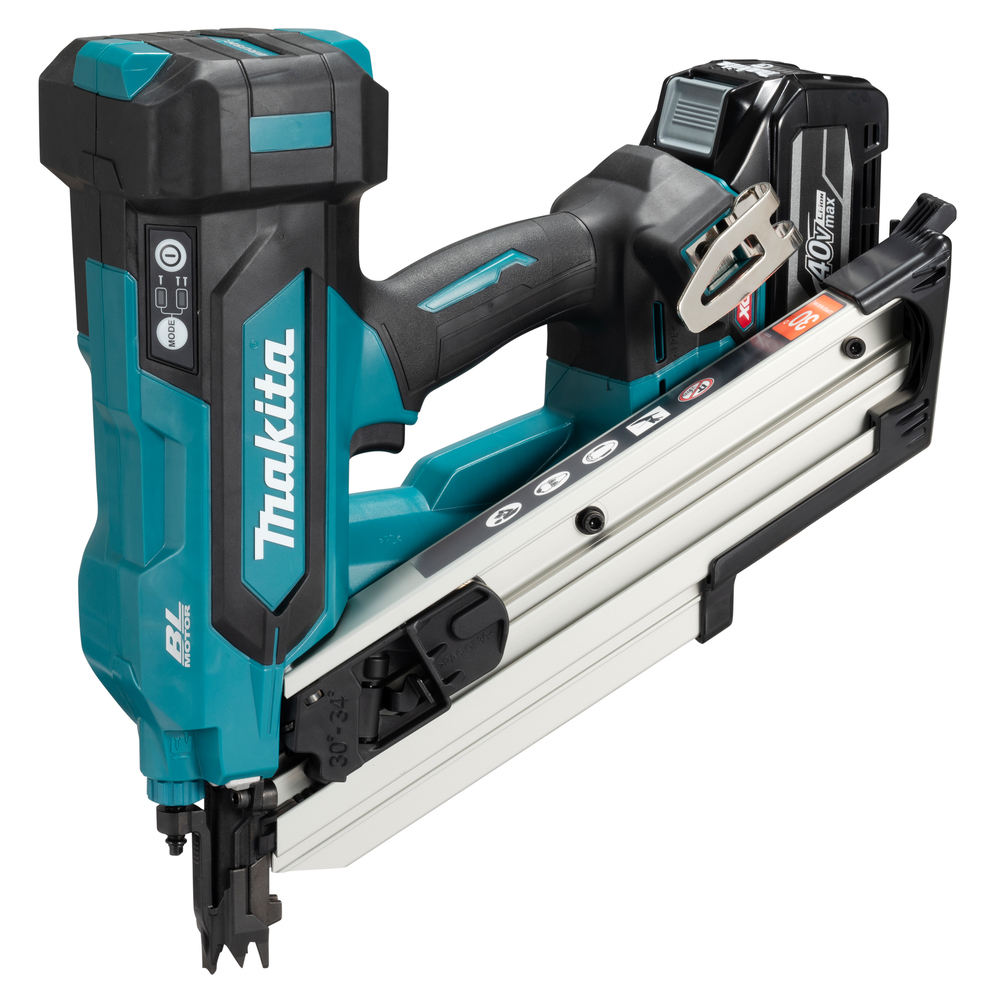

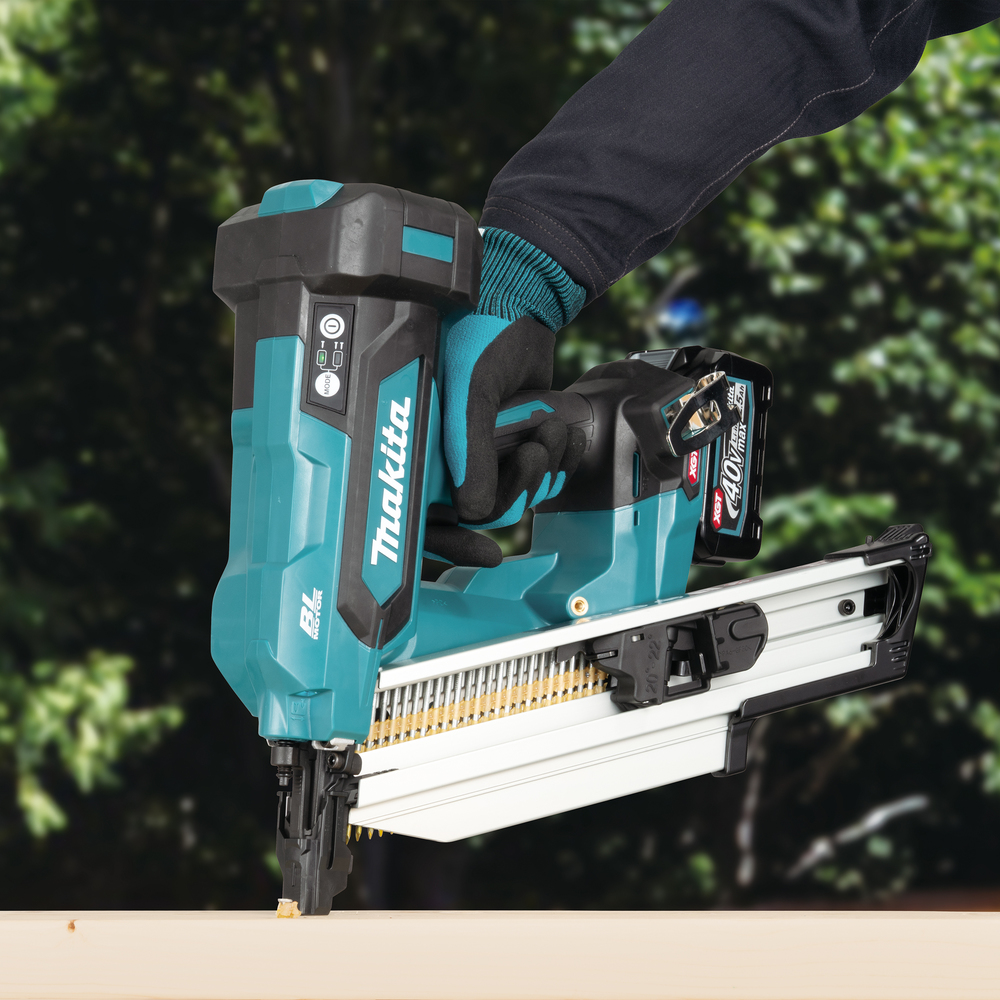

    40V Max Framing Nailer XGT®

40V Max Framing Nailer XGT®

BN002G
Nail type, Round - head
Model BN002G is a framing nailer powered by a 40V Max XGT Li-Ion battery
Significantly improved rapid firing capability, which is superior. Increased compression speed of a pneumatic spring that allows for driving nails up to 90mm with a driving feel very close to that of a pneumatic nailer
  • Available version(s)
  • General
  • Technical info
  • Related Products
  • Parts diagram
  • Dust Extraction
  • Additional info
  • Support

Available version(s)

1 Available version
New product

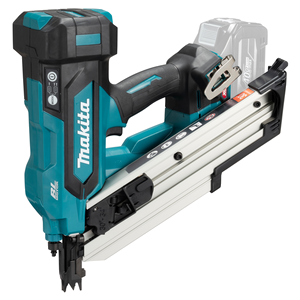

BN002GZ 40V Max Framing Nailer XGT®
Barcode:
0197050013545
Display contents
Model BN002G is a framing nailer powered by a 40V Max XGT Li-Ion battery

General

Next Generation Technology
Brushless Motor

User benefits

  • eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
  • Built-in LED light with pre-glow and afterglow functions illuminates the work area

Technical info

Technical specifications

  • Voltage XGT
  • Nominal Battery Voltage
    40 V
  • Battery Chemistry (Ni-Cd / Ni-MH / Li-ion)
    Li-ion
  • Figure of nail head
    Round
  • Nail Length
    50 - 90 mm
  • Nail Diameter
    2,9 - 3,8 mm
  • Fastener Gauge
    2,9 - 3,8 Ga
  • Fastener Magazine Capacity
    36 - 41
  • Magazine Angle
    20 - 22 º
  • Sound Power Level (LWA)
    101 dB(A)
  • Sound Pressure Level (LpA)
    90 dB(A)
  • Product net weight
    4,7 kg
  • Noise Uncertainty (K Factor)
    3 dB(A)
  • Tool weight with battery
    5,4 - 6,6 kg
  • Product Dimensions (L x W x H):
    389 x 189 x 358 mm

    Product dimensions are stated with a battery / batteries, if they affect the overall dimensions of the product.

    - CXT® machines with 2,0Ah batteries
    - LXT® machines with 6,0Ah batteries
    - XGT® machines with 4,0Ah batteries
  • Vibration Level (3 axes)
    3,7 m/s²
  • Vibration Uncertainty (K Factor)
    1,5 m/s²
  • Depth Adjustment
  • Brushless Motor

Barcode

Symbols:

Anti-restart function

depth adjusting

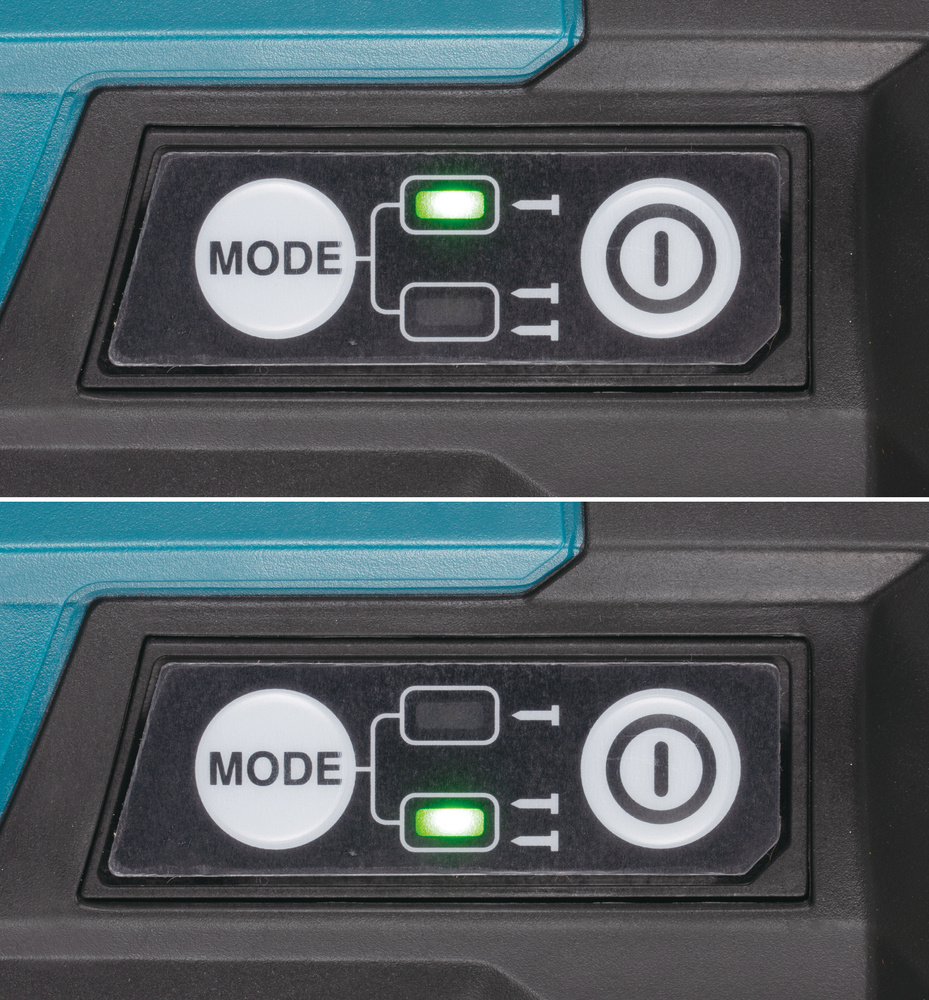

Sequential or bump-fire

Auto Firing Stop

Built-in Job Light
