Homepage TOOLS Cordless Tools Batteries, Chargers and Adapters Adapters USB Adapter LXT®
  • New

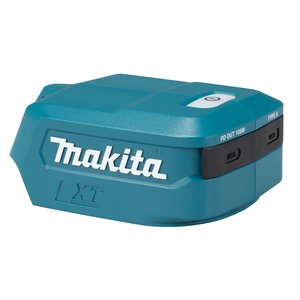

    USB Adapter LXT®

USB Adapter LXT®

ADP15
14,4V / 18V
Charges mobile USB devices e.g. smartphones, tablets and more
The LXT battery-powered USB Adapter delivers portable power for USB devices when mains electricity isn’t available. It features USB-C and USB-A ports for charging two devices at once. USB-C supports PD 3,0 with PPS up to 105 W. Includes thermal protection, auto-off, and overdischarge protection for added safety. Batteries sold separately.
  • Available version(s)
  • General
  • Technical info
  • Related Products
  • Parts diagram
  • Dust Extraction
  • Additional info
  • Support

Available version(s)

1 Available version
New product
EUAADP15 USB Adapter LXT
Barcode:
0197050020109
Display contents

General

LXT Litium-ion

Product description:

USB Adapter to be used with a high-capacity LXT® batteries as a mobile power source for electronic devices. The Adapter is designed to charge smartphones, tablets, laptops and other USB-powered devices in environments where mains power is not available. Wel suited also for professional and construction site use. Two devices can be charged simultaneously with a total maximum output of 117 W via USB-C and USB-A ports.

The USB-C port supports USB Power Delivery 3,0 with PPS (Programmable Power Supply). PPS enables real-time voltage and current adjustments for stable and efficient fast charging. Optimized power control reduces heat and battery wear. It powers laptops and other high-demand devices up to 105 W, with dynamic regulation to minimize transmission losses. The USB-A port provides 5 V / 2,4 A output for standard charging applications.

ON/OFF button allows direct control of USB output. A green LED indicator illuminates when the output is active and blinks if USB-C output is restricted. If continuous maximum output raises internal circuit board temperature above 100 °C, the thermal protection system automatically reduces USB-C power from 105W to 60W. An auto-off function switches the unit off after two hours in low-power state. An overdischarge protection circuit safeguards the battery. A rubber cover protects the USB ports from dust and debris, and an integrated strap hole provides convenient carrying options.

User benefits

  • Push button type ON-OFF switch enables on/off control of USB output
  • LED indicator is on in green while USB output switch is on
  • Compatible with iPhone / Android smartphones
  • With auto-off function

Technical info

Technical specifications

  • Nominal Battery Voltage
    14,4 / 18 V
  • Voltage LXT
  • Battery Chemistry (Ni-Cd / Ni-MH / Li-ion)
    Li-ion
  • Product Dimensions (L x W x H):
    101 x 72 x 42 mm

    Product dimensions are stated with a battery / batteries, if they affect the overall dimensions of the product.

    - CXT® machines with 2,0Ah batteries
    - LXT® machines with 6,0Ah batteries
    - XGT® machines with 4,0Ah batteries
  • Max Output Power
    105 / 12 W
  • USB Output Port
    USB-C PD + USB-A
  • Product net weight
    0,15 kg
  • Quantity
    1

Barcode

0197050020109
