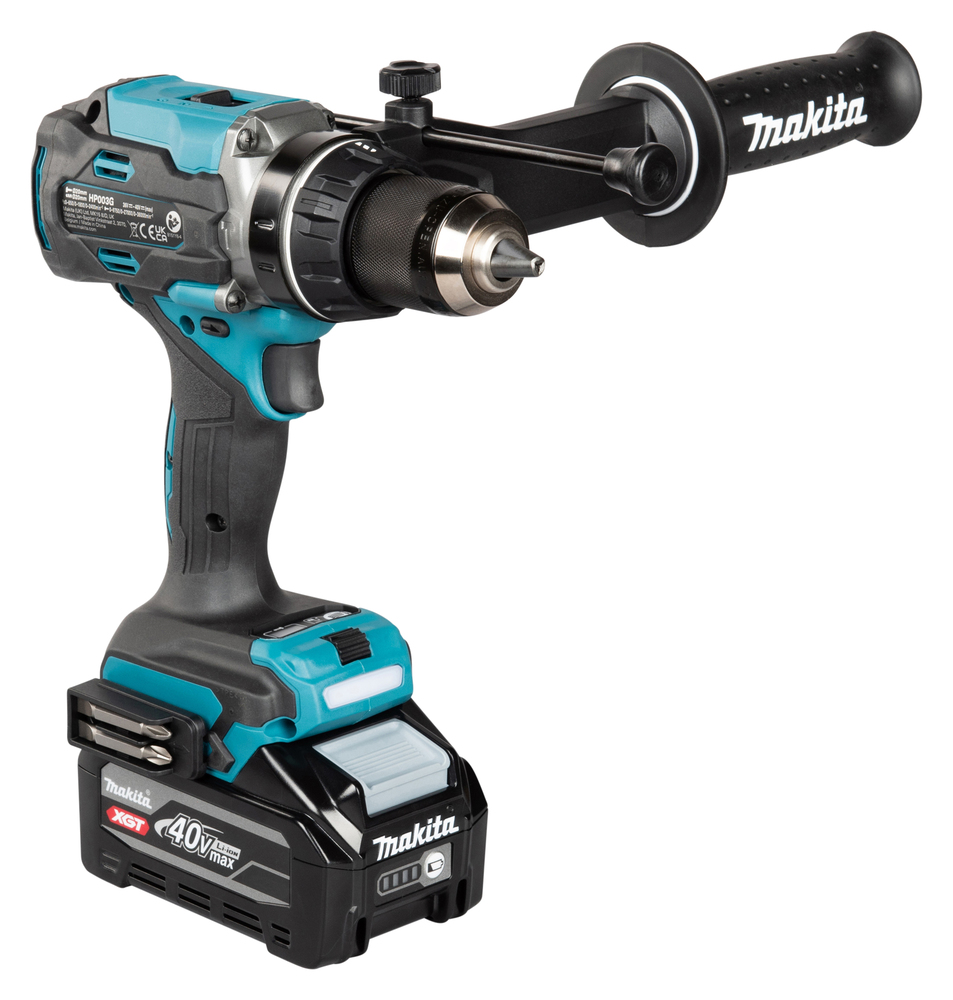

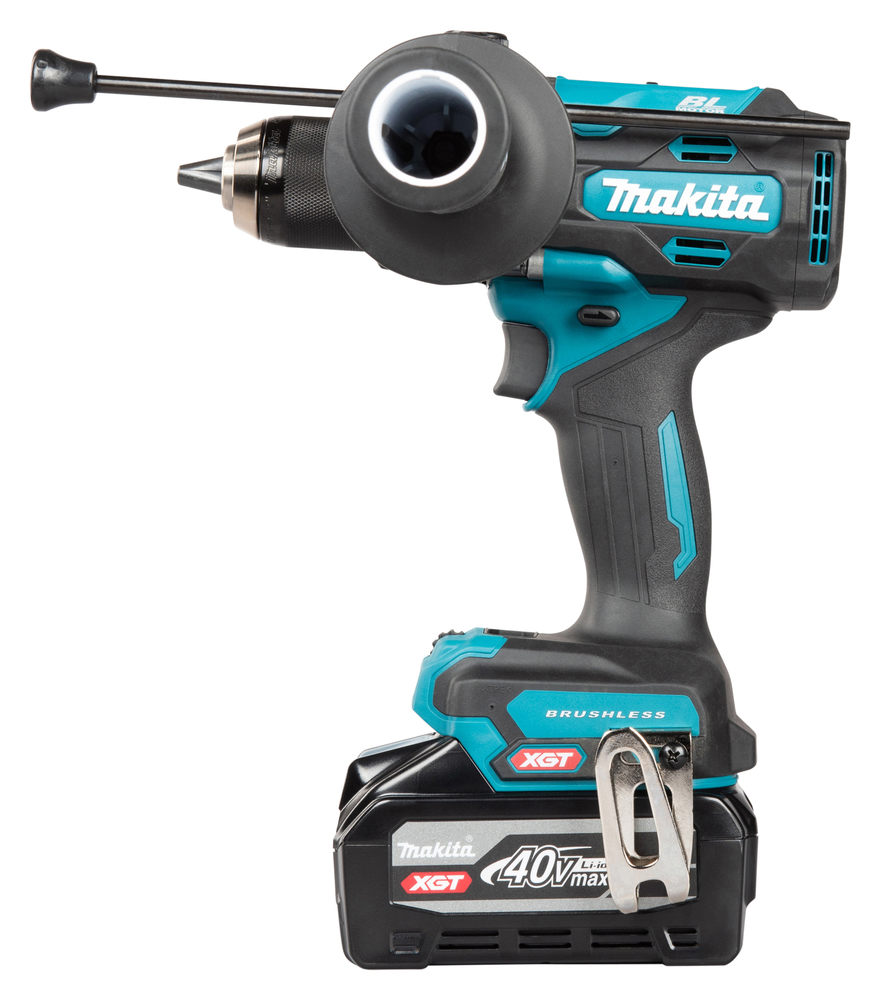

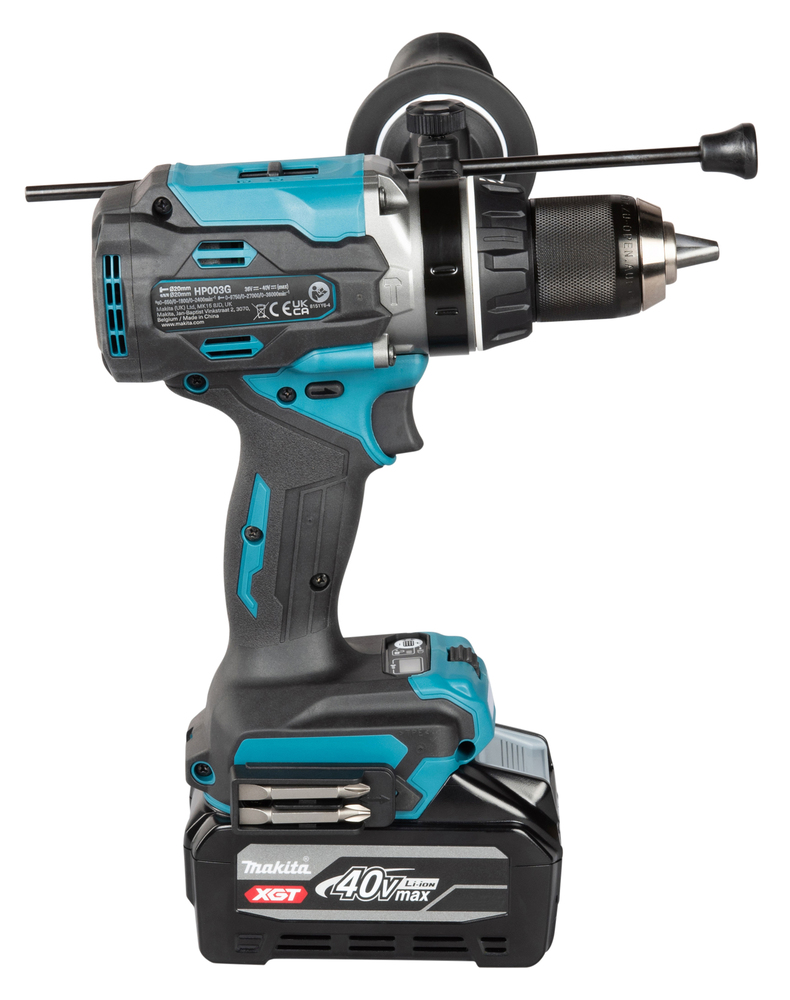

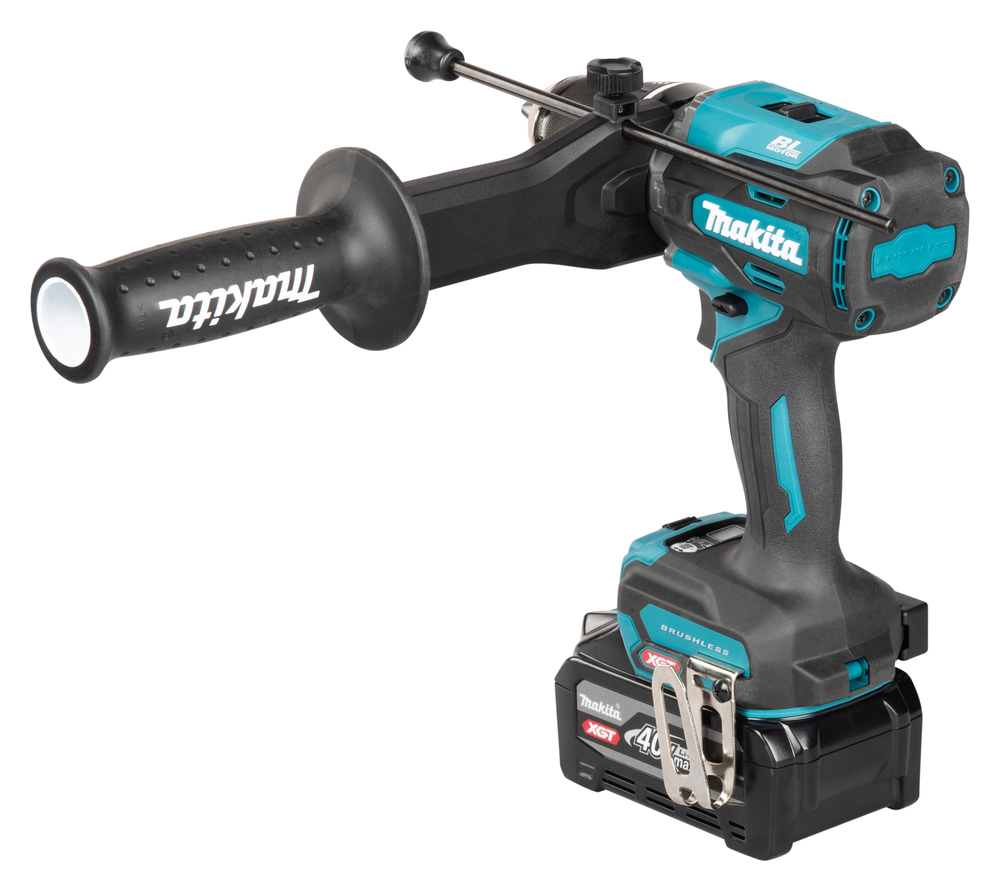

Combi Drill XGT®,

Technical specifications

Nominal Battery Voltage
40 V
Voltage XGT
Brushless Motor

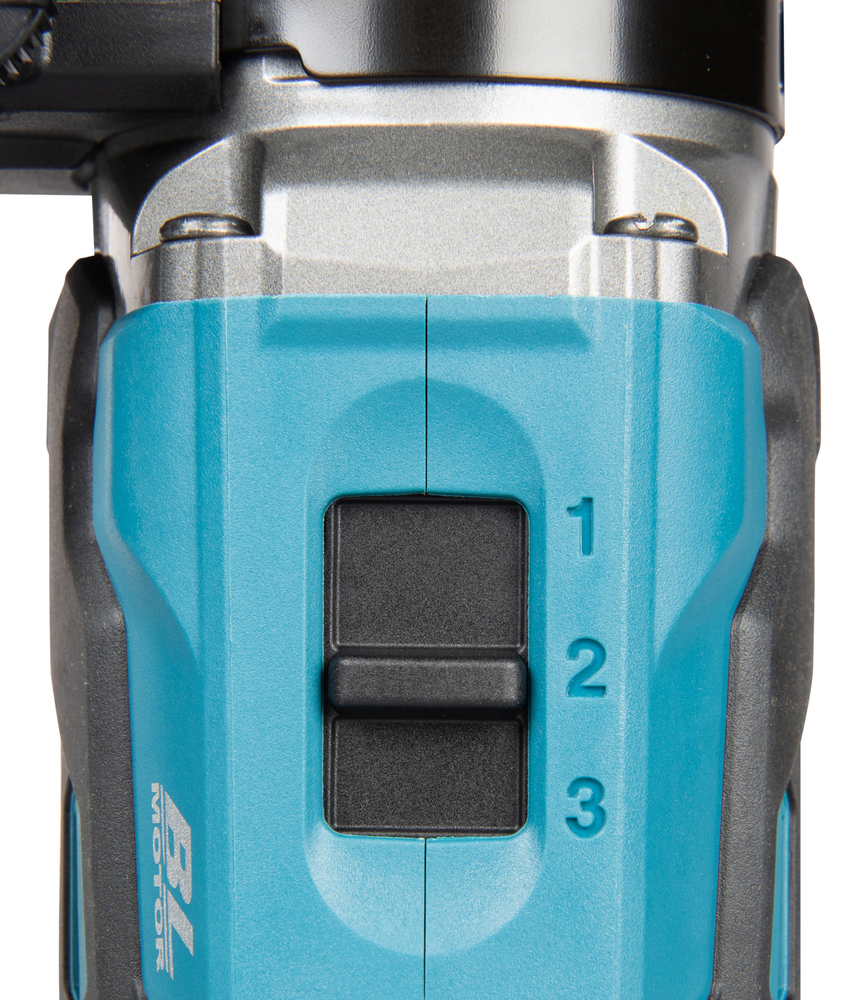

No load speed
0 - 650 / 1800 / 2400 min⁻¹
Max. fastening torque Hard/Soft
150 / 88 Nm
Torque setting
41 / 30 / 25
Impacts per Minute (IPM)
0 - 9750 / 27000 / 36000 min⁻¹
Max. Drilling Diameter in Masonry
20 mm
Max. Drilling Diameter in Steel
20 mm

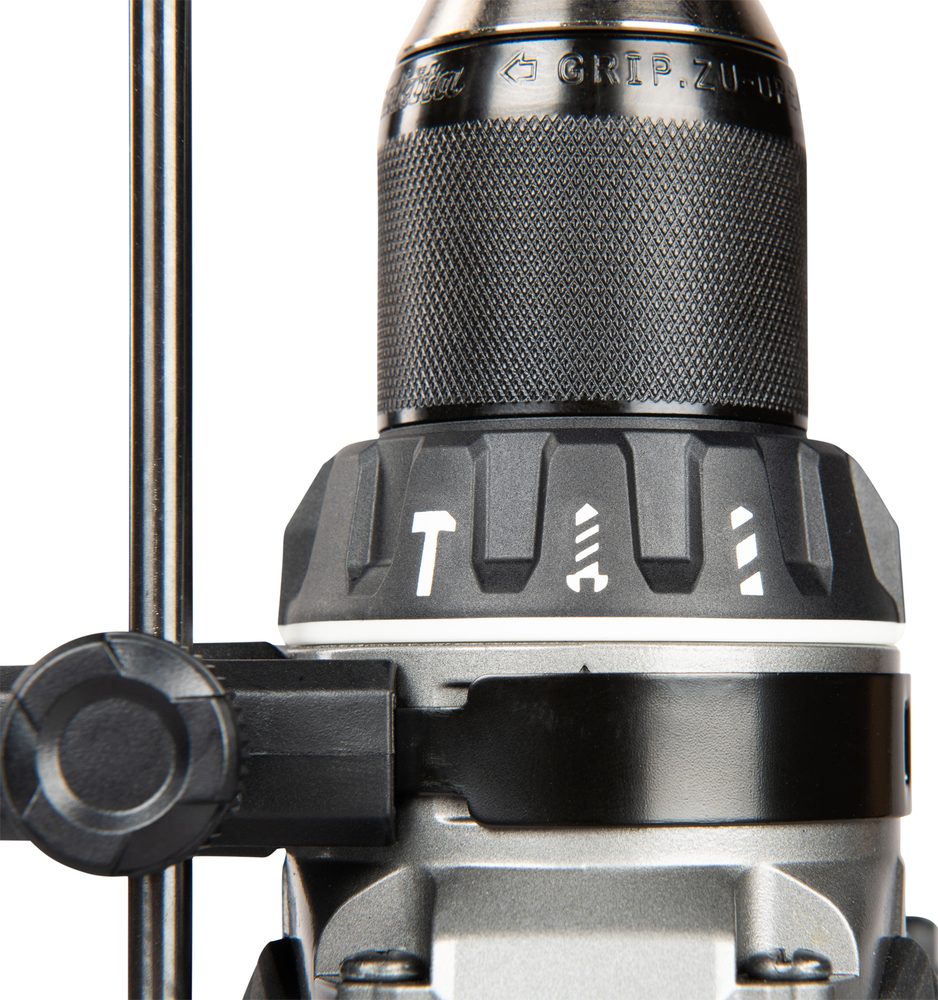

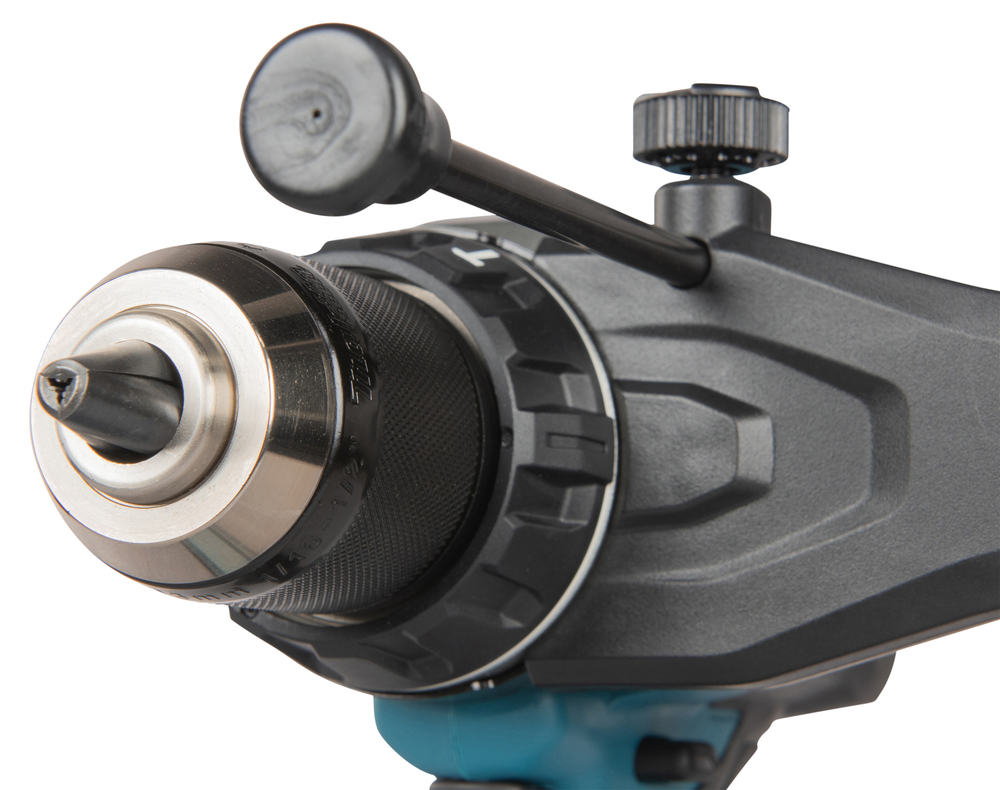

Drill Chuck Capacity
1,5 - 13 mm
Sound Power Level (L_WA)
96 dB(A)
Sound Pressure Level (L_pA)
88 dB(A)
Noise Uncertainty (K Factor)
3 dB(A)
Tool weight with battery
2,8 - 4,0 kg
Product Dimensions (L x W x H):
197 x 86 x 284 mm

Product dimensions are stated with a battery / batteries, if they affect the overall dimensions of the product.


- CXT® machines with 2,0Ah batteries
- LXT® machines with 6,0Ah batteries
- XGT® machines with 4,0Ah batteries
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion)
Li-ion
Max Torque
180 Nm
Drilling Capacity Wood (Auger Bit)
50 mm
Drilling Capacity Wood (Self-feed bit)
92 mm
Drilling Capacity Flat bit
40 mm
Drilling Capacity Hole Saw
152 mm
Electronic brake
Product net weight
2,1 kg
Vibration Level, Drilling into metal
≤ 2,5 m/s²
Vibration Uncertainty (K Factor), Drilling into metal
1,5 m/s²
Vibration Level, Impact Drilling into Concrete
6,8 m/s²
Vibration Uncertainty (K Factor), Impact Drilling into Concrete
1,5 m/s²
