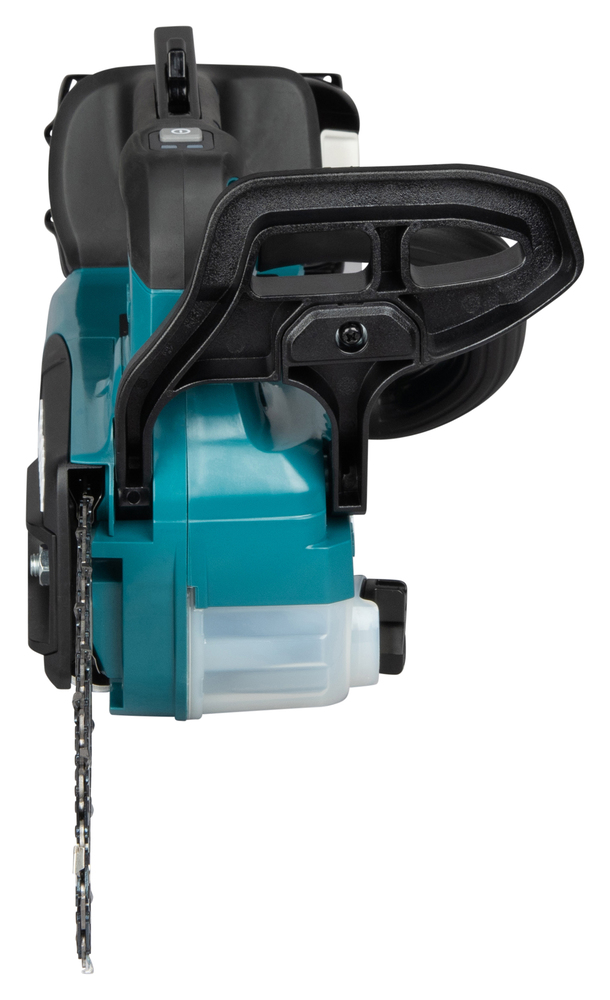

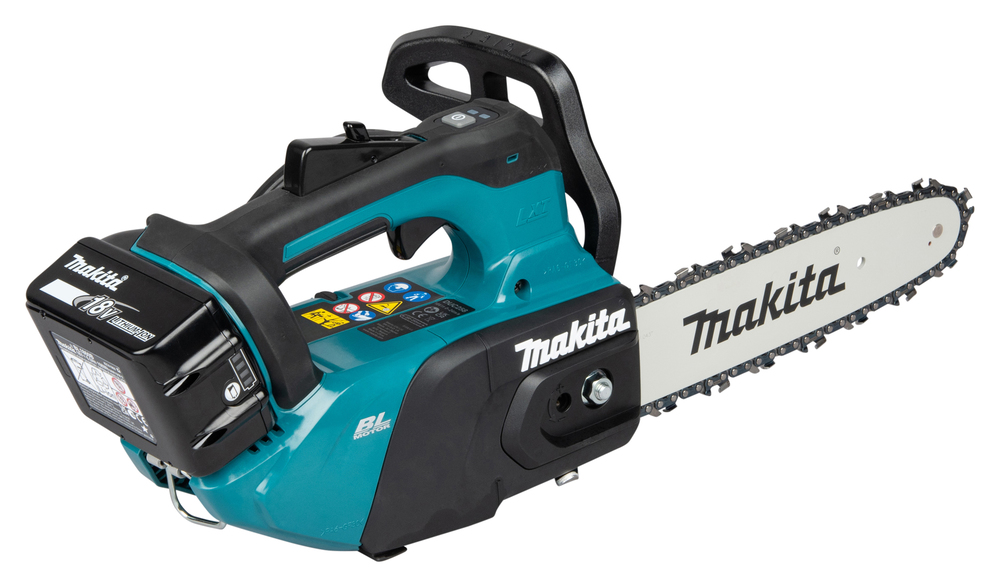

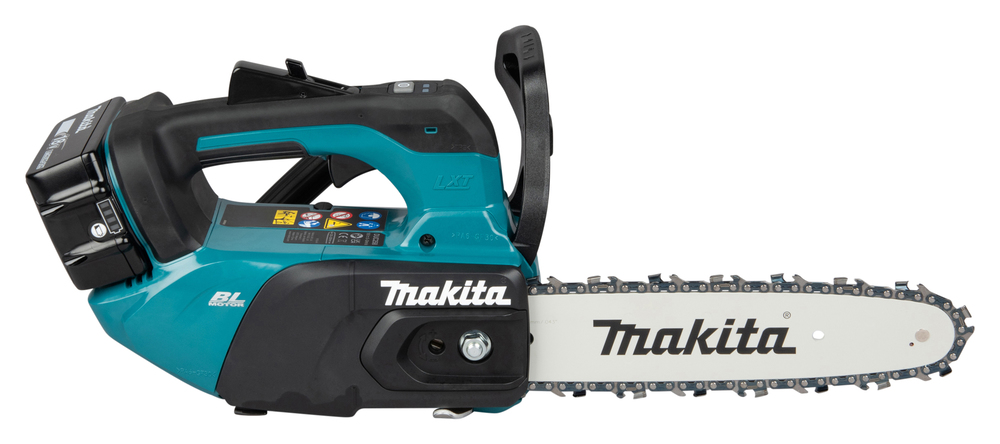

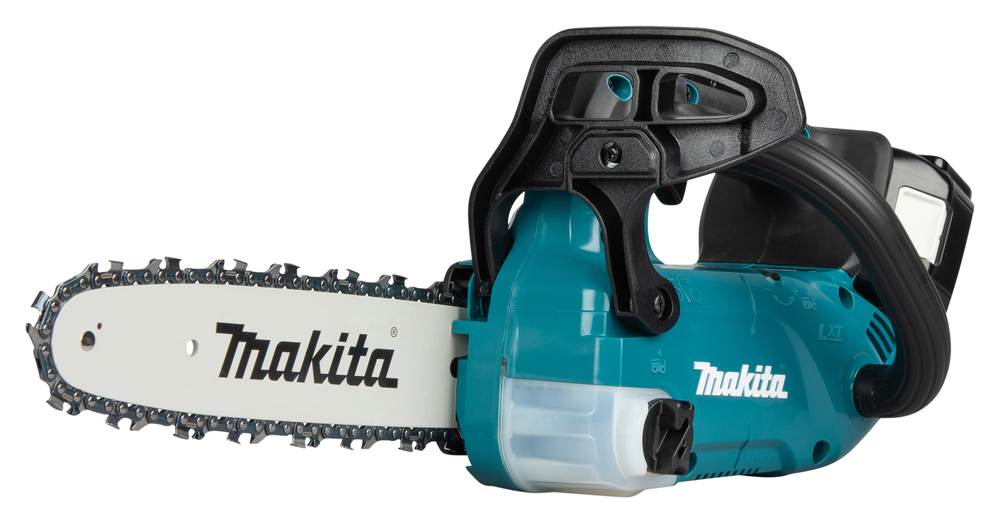

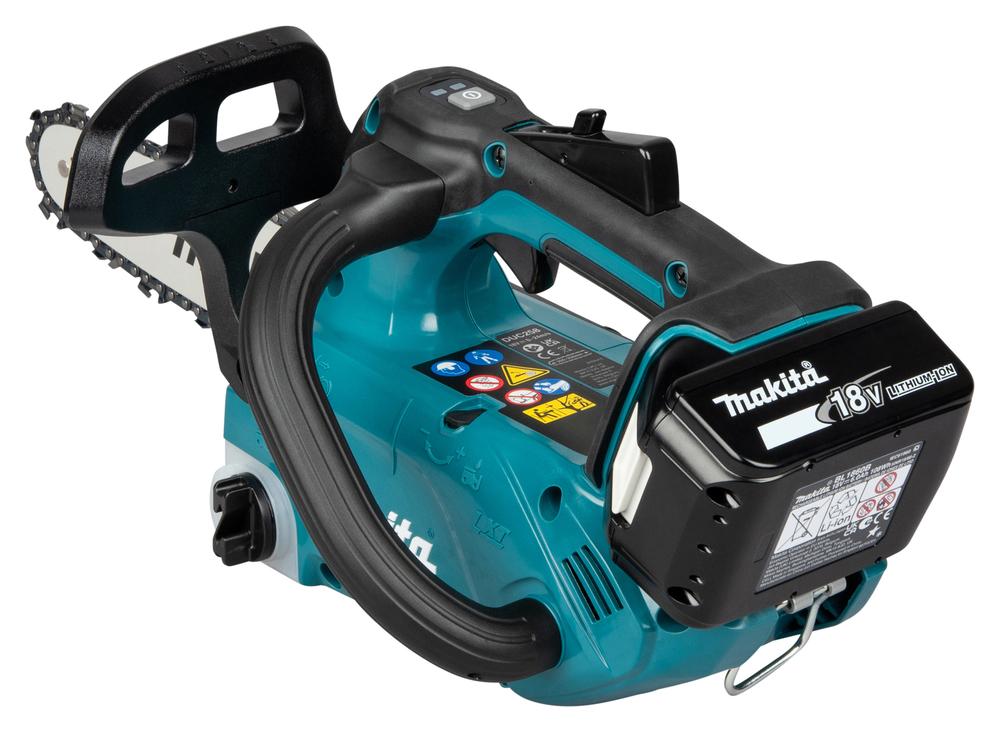

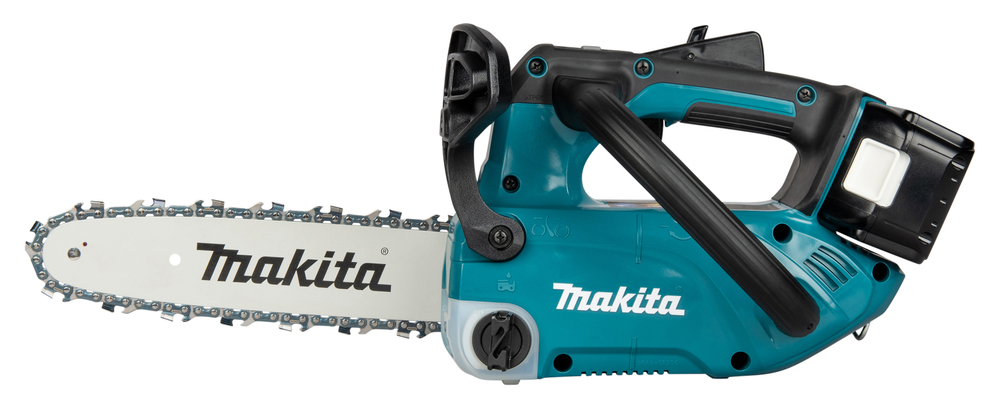

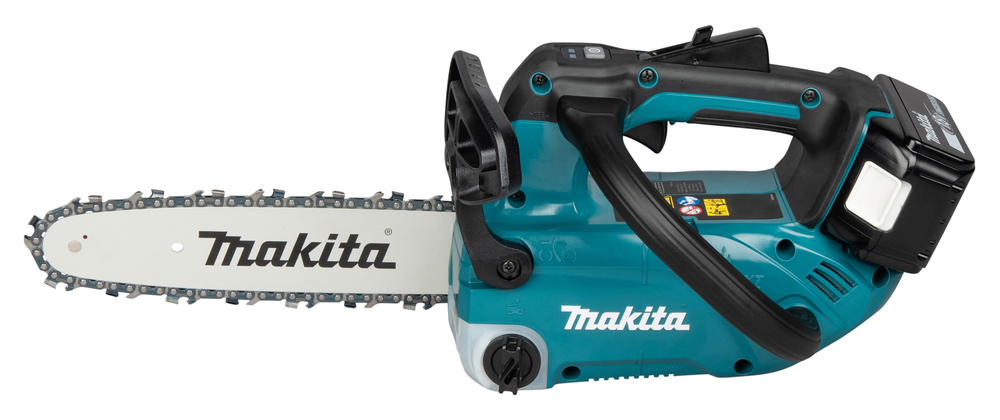

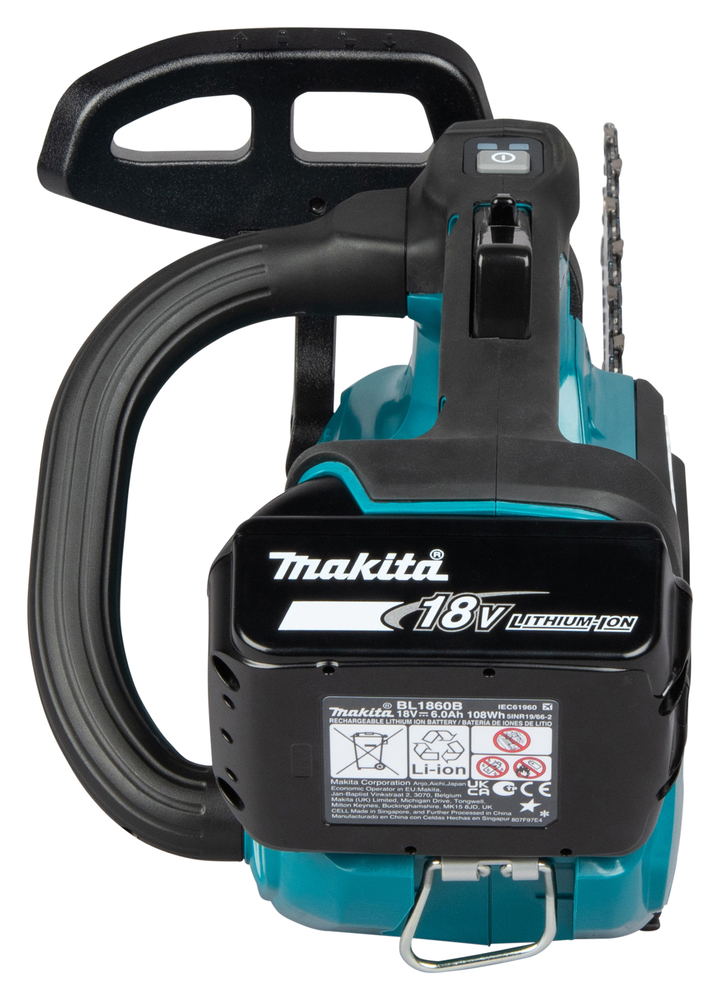

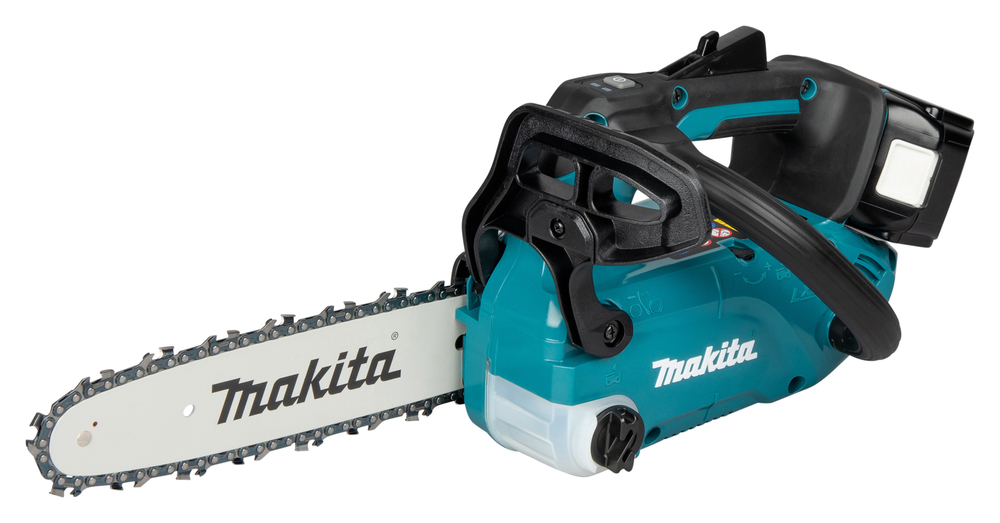

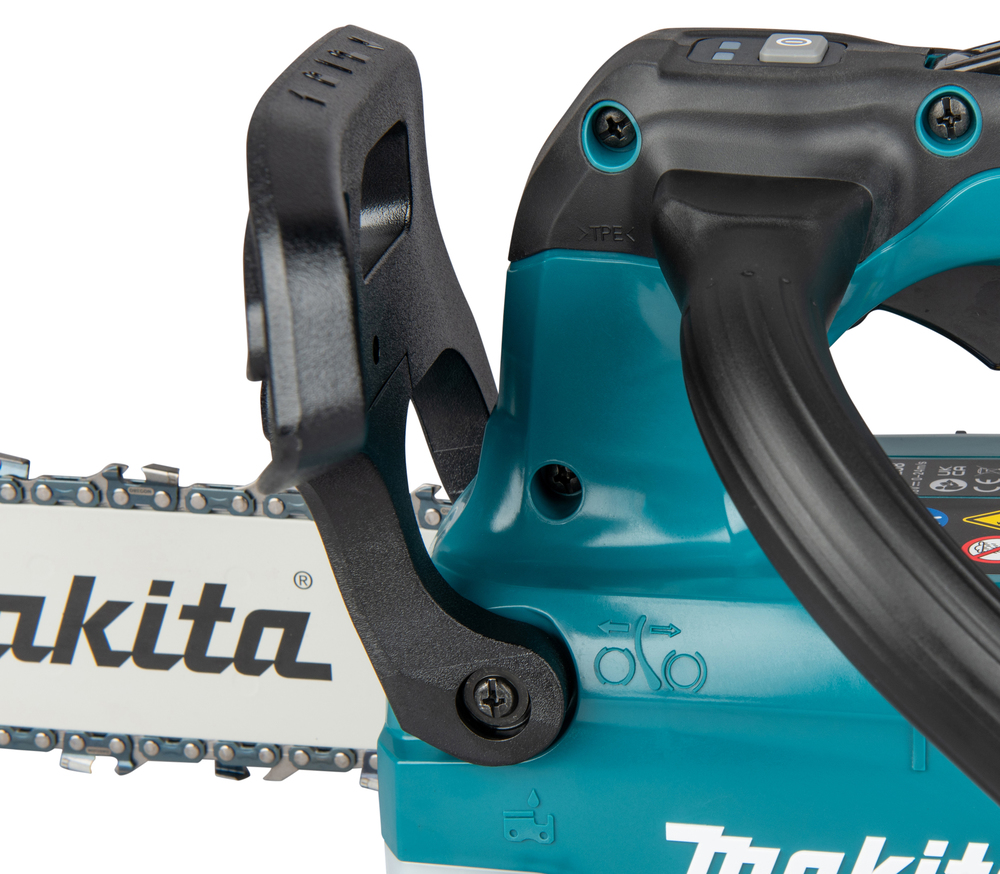

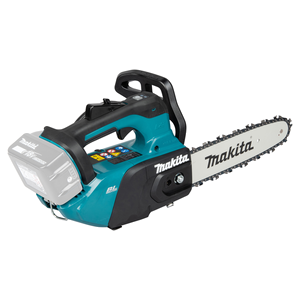

18V Top Handle Chainsaw LXT®

Technical specifications

Nominal Battery Voltage
18 V
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion)
Li-ion
Max. Chain Speed (No Load)
24,0 m/s

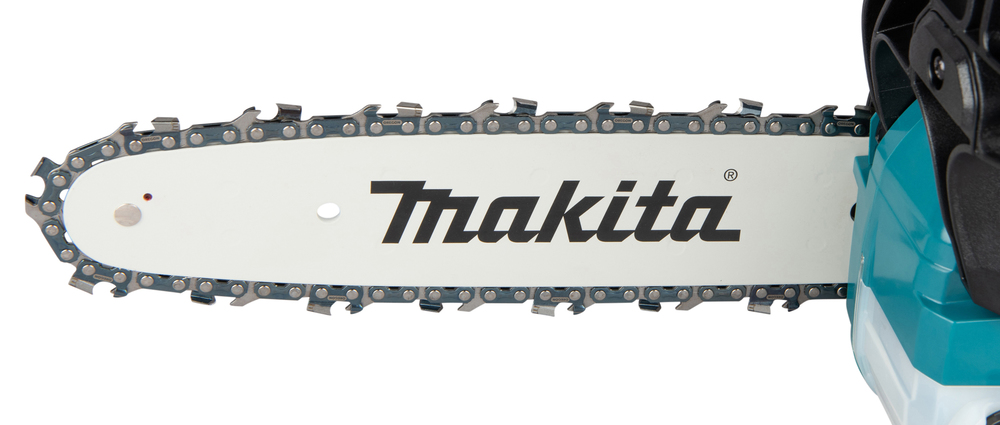

Chain Pitch
1/4 / 3/8 / 0,325 "
Chain Gauge
0,043 / 0,050 "
Chain Gauge
1,1 / 1,3 mm
Number of Drive Links
40 / 46 / 60

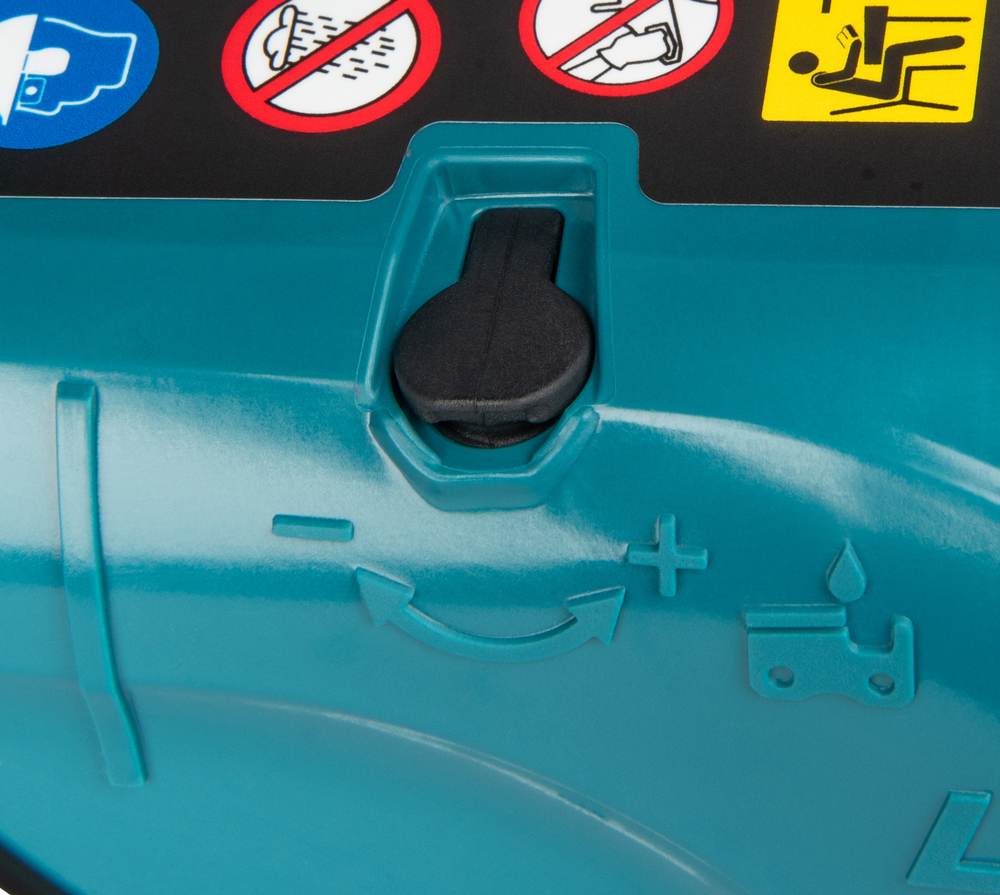

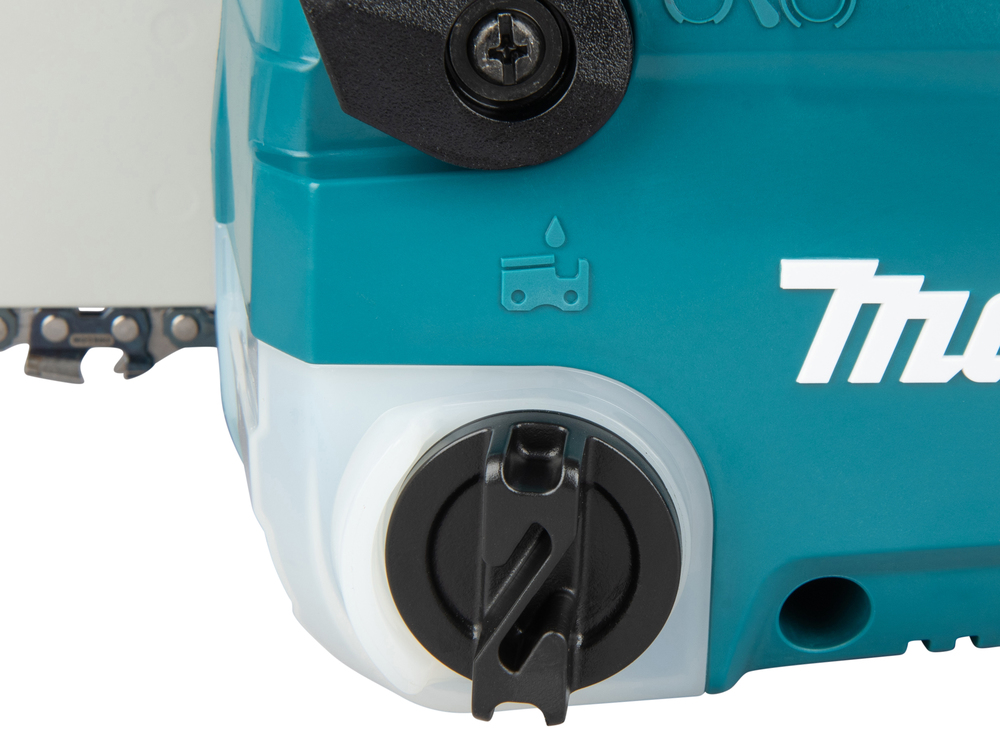

Chain Oil Tank
140 ml

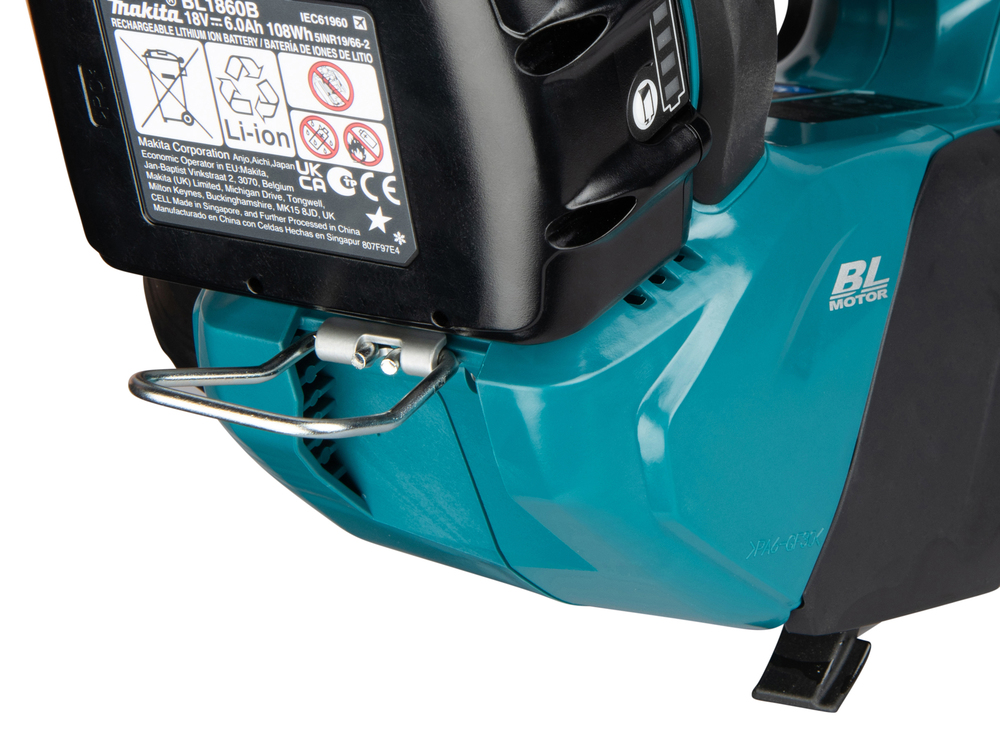

Brushless Motor
chain bar length
250 mm (10") / 200 mm (8")
Vibration Level (3 axes) at Front Handle
1,8 m/s²
Vibration Level (3 axes) at Rear Handle
2,1 m/s²
Vibration Level, Cutting Wood
3,3 m/s²
Vibration Uncertainty (K Factor), Cutting Wood
1,5 m/s²
Sound Power Level (L_WA)
100 dB(A)
Sound Pressure Level (L_pA)
92 dB(A)
Noise Uncertainty (K Factor)
2,4 dB(A)
Product Dimensions (L x W x H):
519 x 181 x 194 mm

Product dimensions are stated with a battery / batteries, if they affect the overall dimensions of the product.


- CXT® machines with 2,0Ah batteries
- LXT® machines with 6,0Ah batteries
- XGT® machines with 4,0Ah batteries
Tool weight with battery
2,6 - 3,0 kg
Product net weight
1,8 kg
