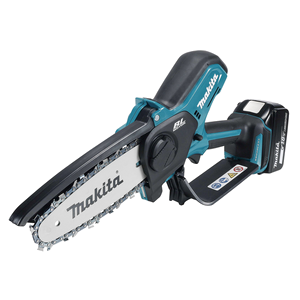

Pruning Saw LXT®
DUC150- Available version(s)
- General
- Technical info
- Related Products
- Parts diagram
- Dust Extraction
- Additional info
- Support
Available version(s)
General
User benefits
- Compact and lightweight design
- Brushless maintenance-free and long-life motor
- Electric brake for maximum productivity and increased operator safety
- Automatic chain lubrication
- XPT (Extreme Protection Technology) is engineered for improved dust and water resistance for operation in harsh job site conditions
- Battery protection circuit protects against overloading, over-discharging and over-heating
- Rubberised soft grip for more comfort and control
Technical info
Technical specifications
-
Nominal Battery Voltage18 V
-
Max. Chain Speed (No Load)8,0 m/s
-
Chain Pitch0,325 "
-
Chain Gauge0,043 "
-
Chain Gauge1,1 mm
-
Number of Drive Links32
-
Chain Oil Tank0,055 L
-
Sound Power Level (LWA)87 dB(A)
-
Sound Pressure Level (LpA)79 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Vibration Uncertainty (K Factor)1,5 m/s²
-
Tool weight with battery1,7 - 2,0 kg
-
Product Dimensions (L x W x H):459 x 90 x 249 mm
Product dimensions are stated with a battery / batteries, if they affect the overall dimensions of the product.
- CXT® machines with 2,0Ah batteries
- LXT® machines with 6,0Ah batteries
- XGT® machines with 4,0Ah batteries -
Brushless Motor
-
Voltage LXT
-
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion)Li-ion
-
Max Output Power320 W
-
Chain Speed at Max. Power8,0 m/s
-

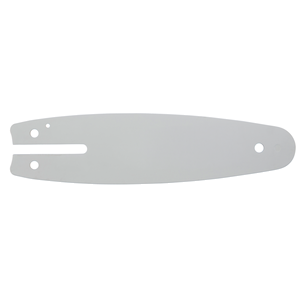

chain bar length150 mm (6")
-
Vibration Level (3 axes), Cutting Wood4,8 m/s²
-
Product net weight1,1 kg
Symbols:
Brake
Automatic Oiling
