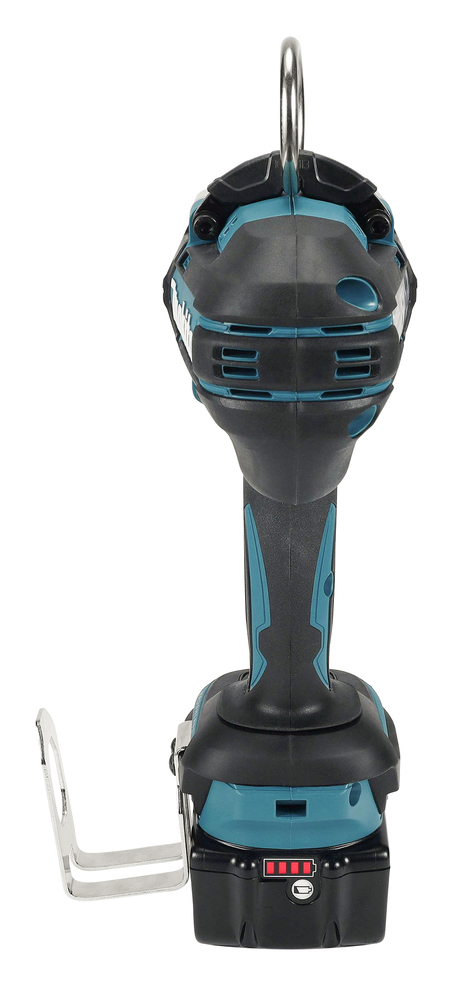

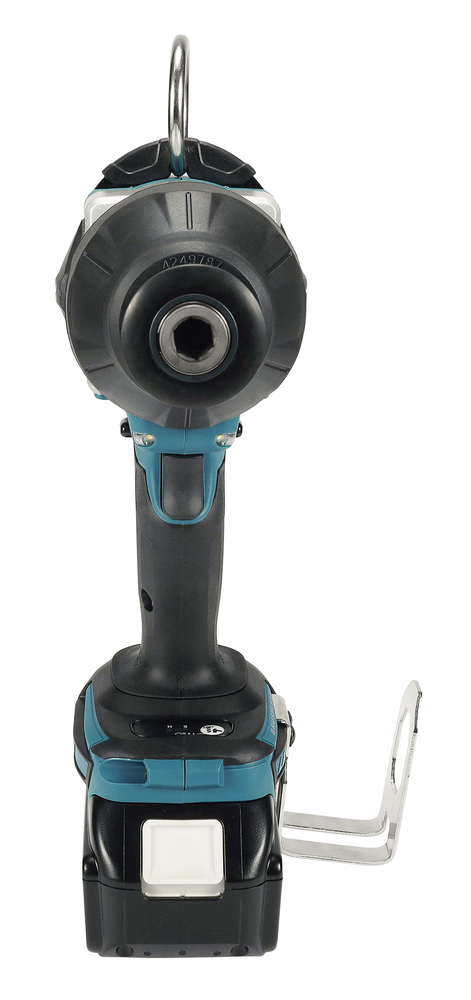

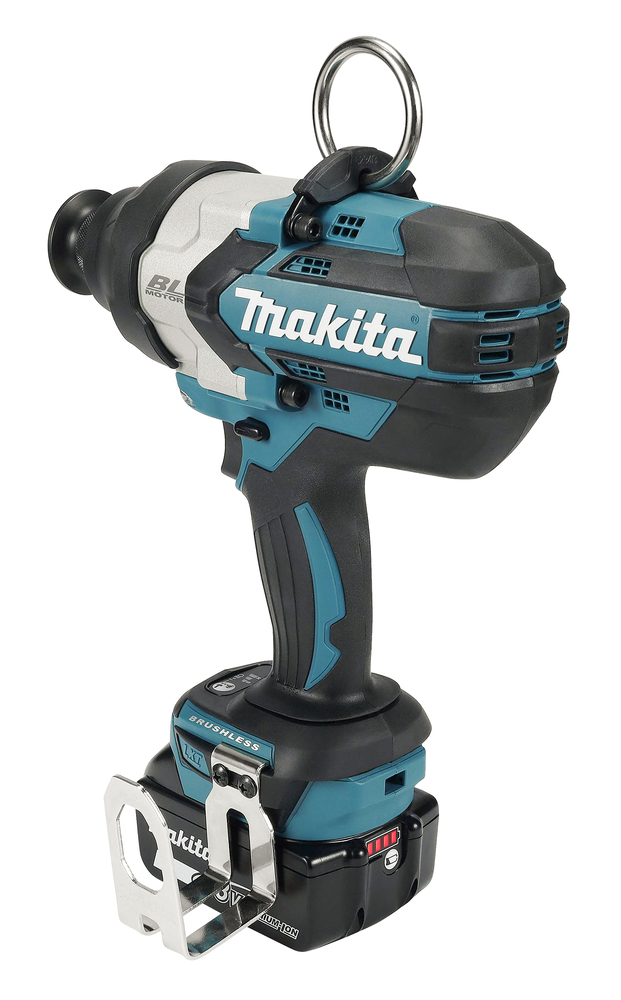

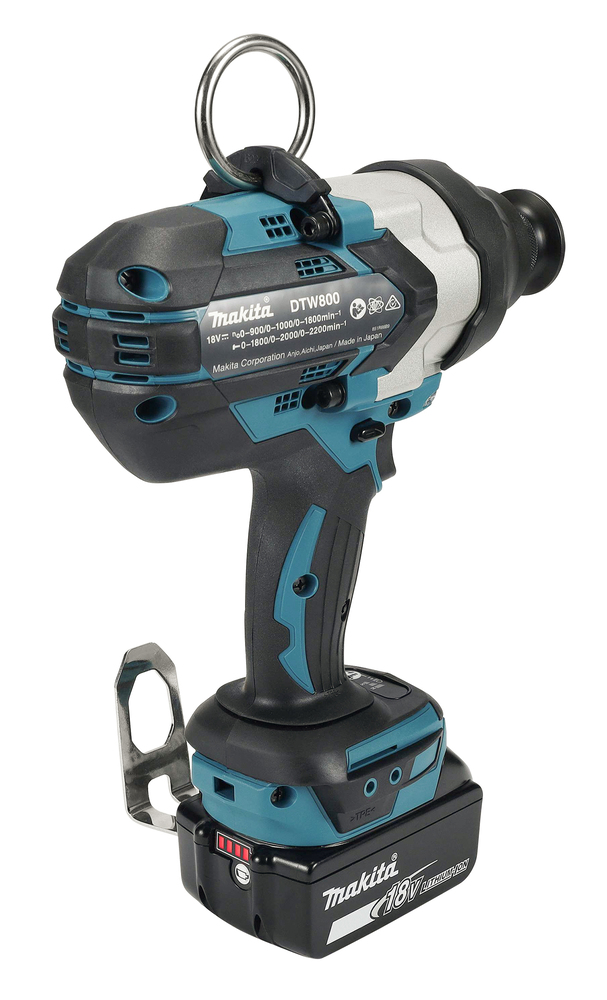

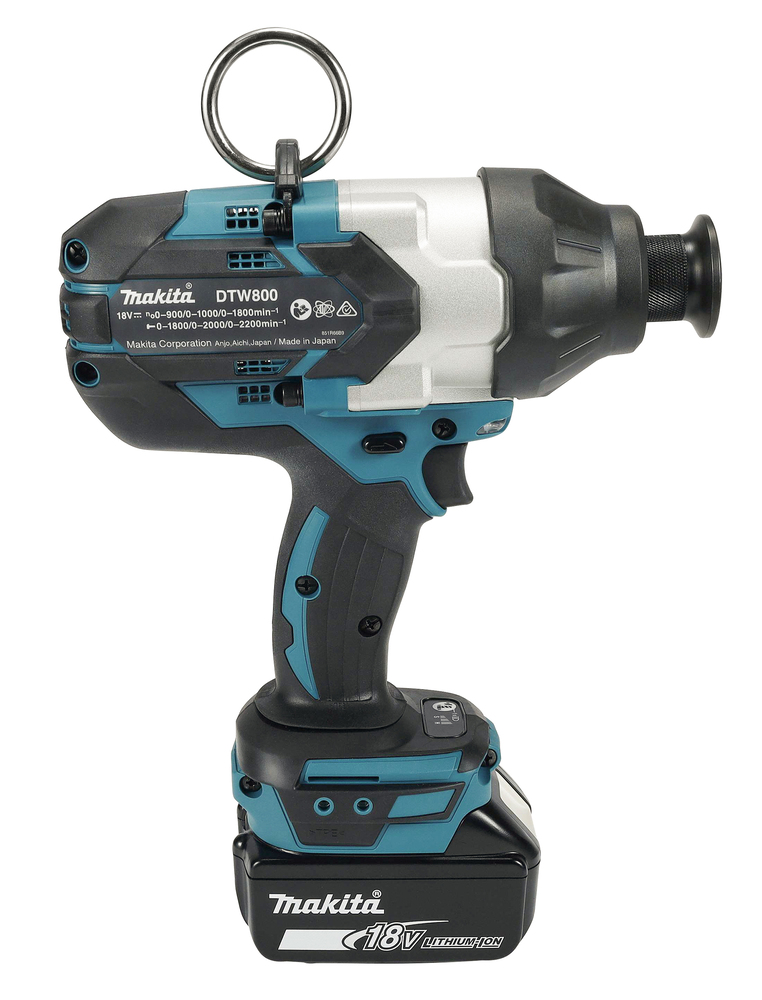

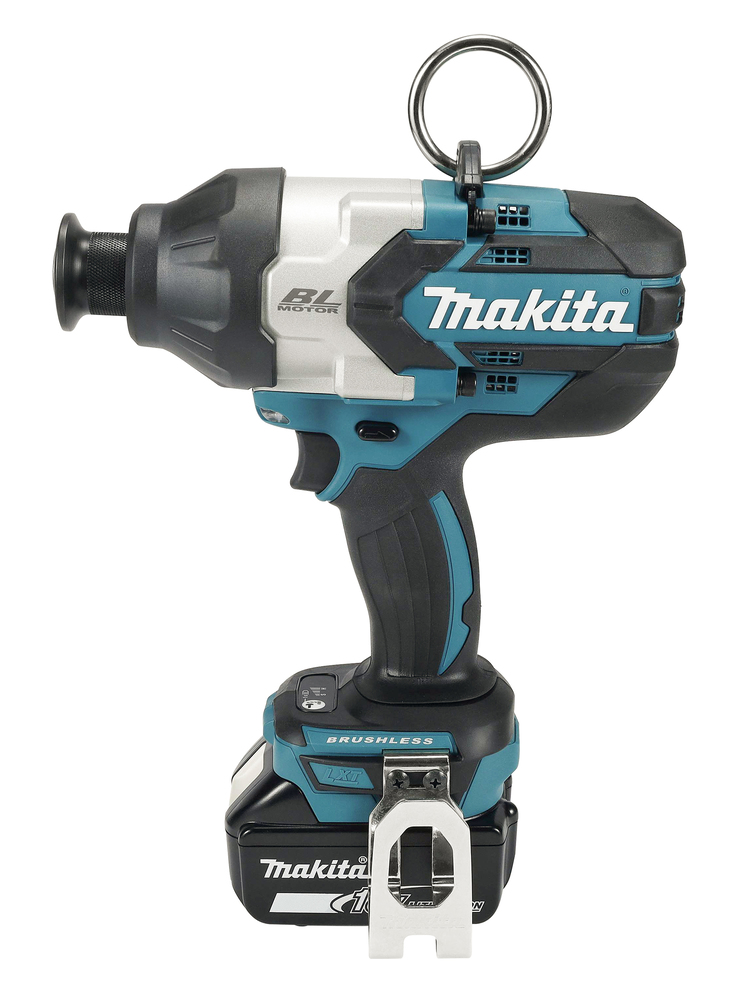

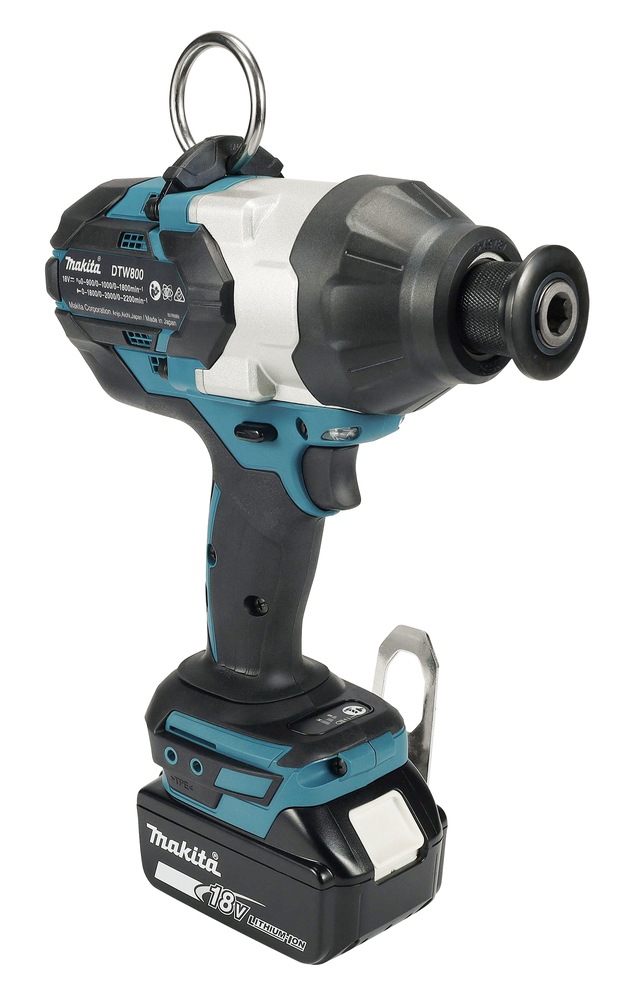

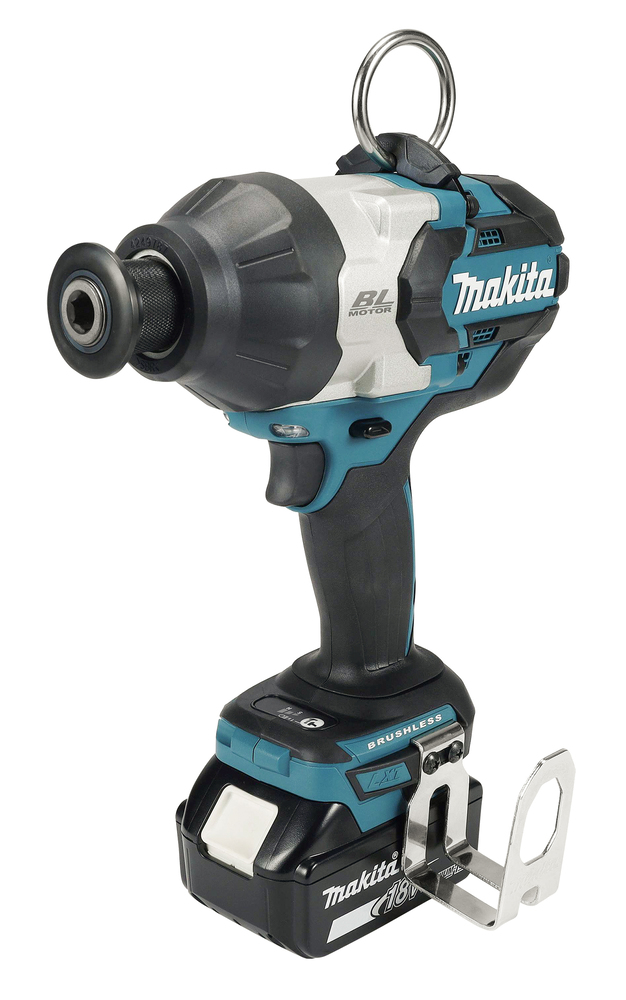

18V Impact Wrench LXT®

Technical specifications

Nominal Battery Voltage
18 V
Voltage LXT
Max Fastening Torque Impact Drill
200 / 300 / 800 Nm
No load speed
0 - 900 / 1000 / 1800 min⁻¹
Impacts per Minute (IPM)
0 - 1800 / 2000 / 2200 min⁻¹
Drive Square
7/16 "
Tightening Capacity Standard Bolt
M12 - M24
Tightening Capacity High Tensile Bolt
M10 - M22
Sound Power Level (L_WA)
106 dB(A)
Sound Pressure Level (L_pA)
98 dB(A)
Noise Uncertainty (K Factor)
3 dB(A)
Tool weight with battery
3,5 - 3,8 kg
Product Dimensions (L x W x H):
229 x 91 x 303 mm

Product dimensions are stated with a battery / batteries, if they affect the overall dimensions of the product.


- CXT® machines with 2,0Ah batteries
- LXT® machines with 6,0Ah batteries
- XGT® machines with 4,0Ah batteries
Brushless Motor
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion)
Li-ion
Product net weight
3,2 kg
Vibration Level, Impact Tightening of Fasteners of the Maximum Capacity of the Tool
24,0 m/s²
Vibration Uncertainty (K Factor), Impact Tightening of Fasteners of the Maximum Capacity of the Tool
2,0 m/s²
