New

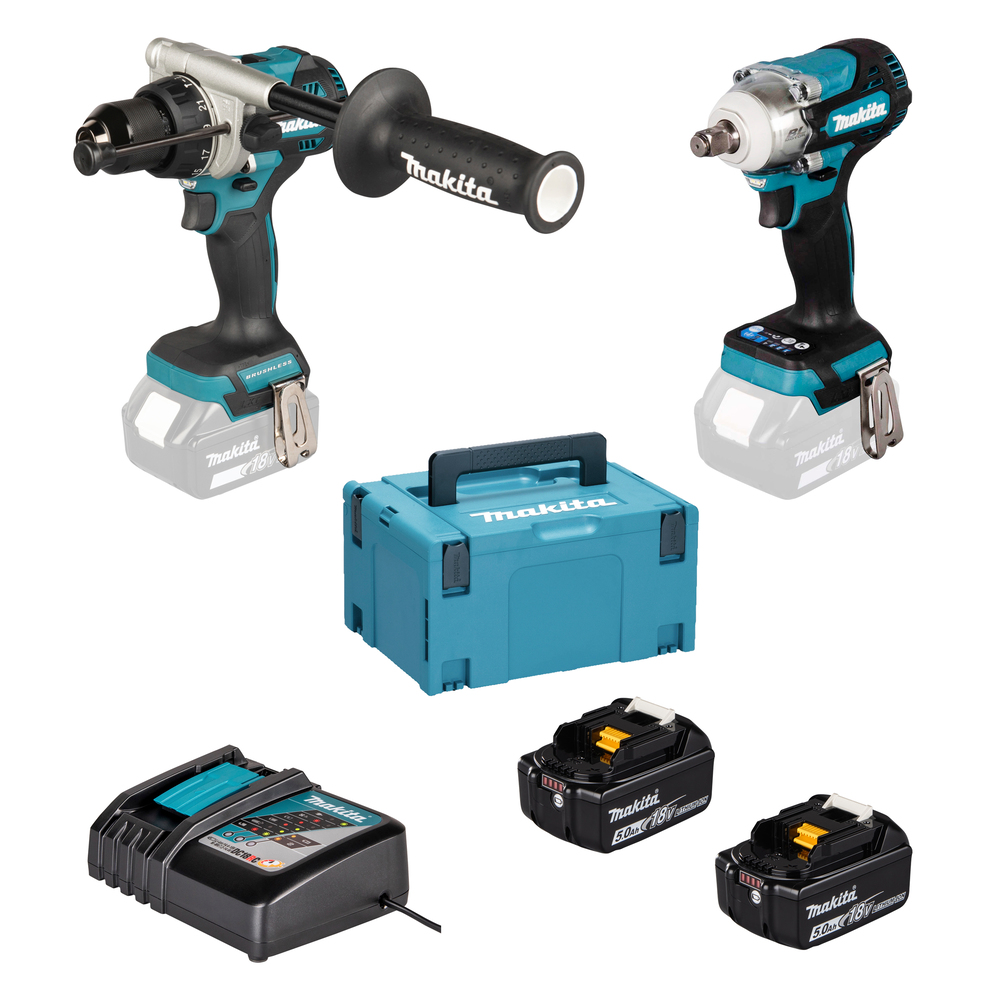

2 Piece Combo Kit LXT®,
DLX2590TJ 18V
Includes: DHP492 Combi Drill and DTW300 Impact Wrench
- Available version(s)
- General
- Technical info
- Related Products
- Parts diagram
- Dust Extraction
- Additional info
- Support
Available version(s)
General
Combokits:
Standard accessories
Standard machines
Technical info
Technical specifications
-
Nominal Battery Voltage18 V
-
Average Charging Time45 min
-
Voltage LXT
-
Number of Batteries Supplied2
-
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion)Li-ion
DHP492:
Nominal Battery Voltage:
18 V
Voltage LXT:
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion):
Li-ion
Brushless Motor:
No load speed:
0 - 550 / 2100 min⁻¹
Max. fastening torque Hard/Soft:
130 / 65 Nm
Max Torque:
141 Nm
Torque setting:
21
Impacts per Minute (IPM):
0 - 8250 / 31500 min⁻¹
Max. Drilling Diameter in Masonry:
16 mm
Max. Drilling Diameter in Steel:
13 mm
Drilling Capacity Wood (Auger Bit):
50 mm
Drilling Capacity Wood (Self-feed bit):
76 mm
Drilling Capacity Flat bit:
40 mm
Drilling Capacity Hole Saw:
152 mm
Driving Shank:
1/2"-20UNF "
Drill Chuck Capacity:
1,5 - 13 mm
Electronic brake:
Vibration Level, Drilling into metal:
≤ 2,5 m/s²
Vibration Uncertainty (K Factor), Drilling into metal:
1,5 m/s²
Vibration Level, Impact Drilling into Concrete:
8,6 m/s²
Vibration Uncertainty (K Factor), Impact Drilling into Concrete:
1,5 m/s²
Sound Power Level (LWA):
95 dB(A)
Sound Pressure Level (LpA):
87 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Product Dimensions (L x W x H)::
180 x 81 x 265 mm
Tool weight with battery:
2,3 - 2,7 kg
Product net weight:
1,7 kg
DTW300:
Nominal Battery Voltage:
18 V
Voltage LXT:
Max Fastening Torque Impact Drill:
100 / 160 / 210 / 330 Nm
No load speed:
0 - 1000 / 1800 / 2600 / 3200 min⁻¹
Impacts per Minute (IPM):
0 - 1800 / 2600 / 3400 / 4000 min⁻¹
Drive Square:
1/2 "
Tightening Capacity Standard Bolt:
M10 - M20
Tightening Capacity High Tensile Bolt:
M10 - M16
Sound Power Level (LWA):
108 dB(A)
Sound Pressure Level (LpA):
97 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Tool weight with battery:
1,5 - 1,8 kg
Product Dimensions (L x W x H)::
144 x 81 x 246 mm
Brushless Motor:
Nut-busting torque:
580 Nm
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion):
Li-ion
Product net weight:
1,2 kg
Vibration Level, Impact Tightening of Fasteners of the Maximum Capacity of the Tool:
12,5 m/s²
Vibration Uncertainty (K Factor), Impact Tightening of Fasteners of the Maximum Capacity of the Tool:
1,5 m/s²
