New

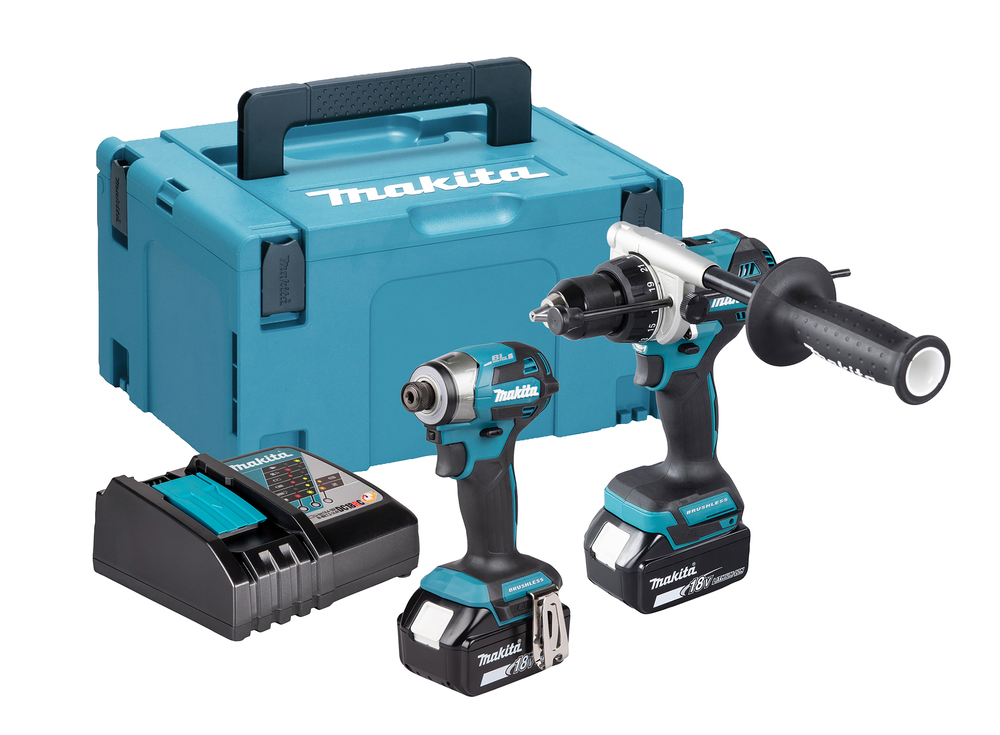

18V 2 Piece Combo Kit LXT®
DLX2516TJIncludes DTD173Z Impact Driver DHP486Z Combi Drill
- Available version(s)
- General
- Technical info
- Related Products
- Parts diagram
- Dust Extraction
- Additional info
- Support
Available version(s)
General
Combokits:
Standard accessories
Standard machines
Technical info
Technical specifications
-
Nominal Battery Voltage18 V
-
Voltage LXT
-
Battery Capacity5,0 Ah
-
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion)Li-ion
-
Brushless Motor
DTD173:
Nominal Battery Voltage:
18 V
Voltage LXT:
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion):
Li-ion
Brushless Motor:
No load speed:
0 - 1100 / 2100 / 3200 / 3600 min⁻¹
Max Fastening Torque Impact Drill:
20 / 50 / 170 / 180 Nm
Impacts per Minute (IPM):
0 - 1100 / 2600 / 3600 / 3800 min⁻¹
Tightening Capacity Standard Bolt:
M5 - M16
Capacity machine screw:
M4 - M8
Tightening Capacity High Tensile Bolt:
M5 - M14
Driving Shank:
1/4 "
Sound Power Level (LWA):
108 dB(A)
Sound Pressure Level (LpA):
97 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Vibration Level, Impact Tightening of Fasteners of the Maximum Capacity of the Tool:
12,9 m/s²
Vibration Uncertainty (K Factor), Impact Tightening of Fasteners of the Maximum Capacity of the Tool:
1,5 m/s²
Product Dimensions (L x W x H)::
111 x 81 x 234 mm
Tool weight with battery:
1,2 - 1,5 kg
Product net weight:
0,85 kg
