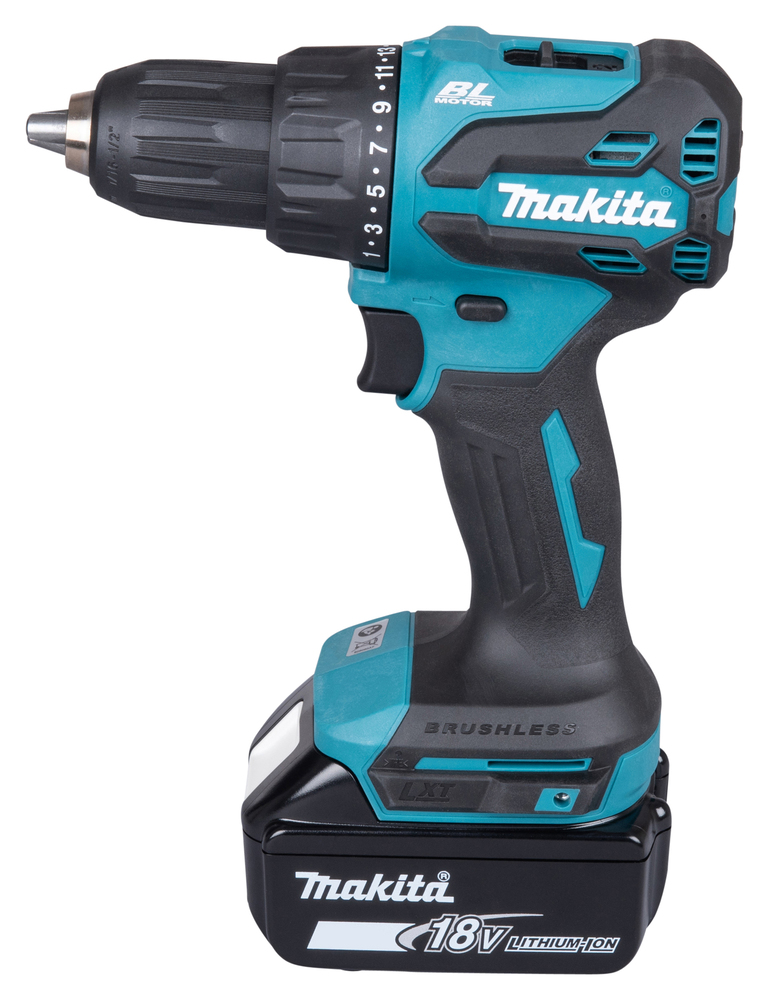

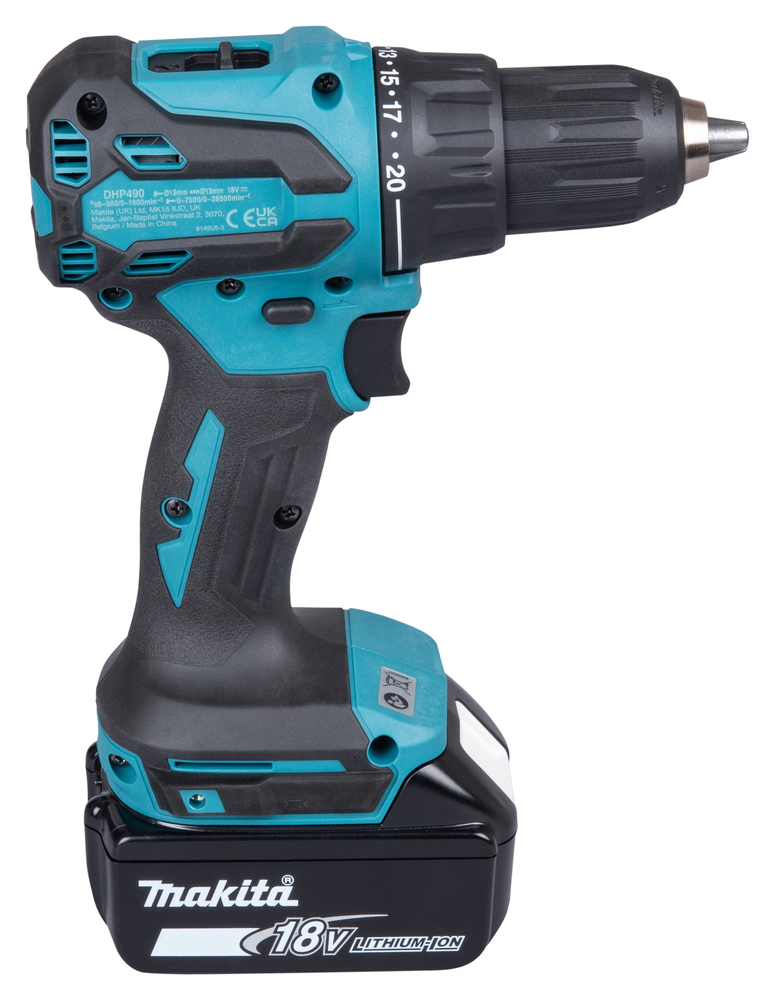

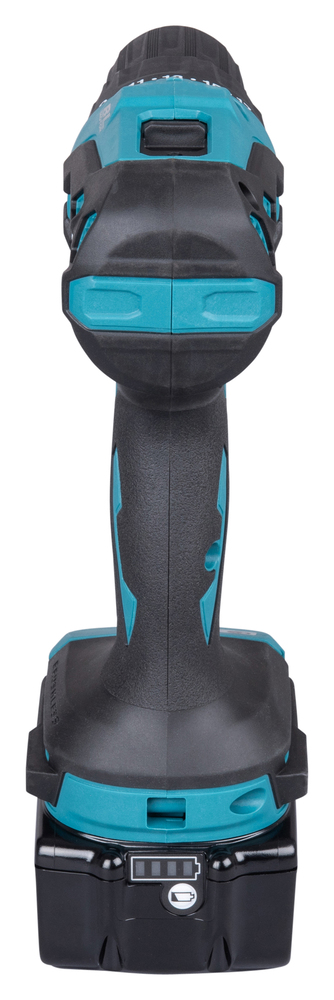

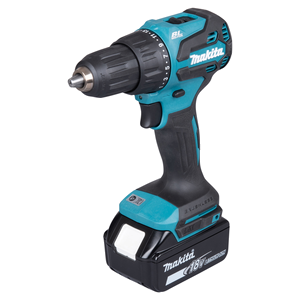

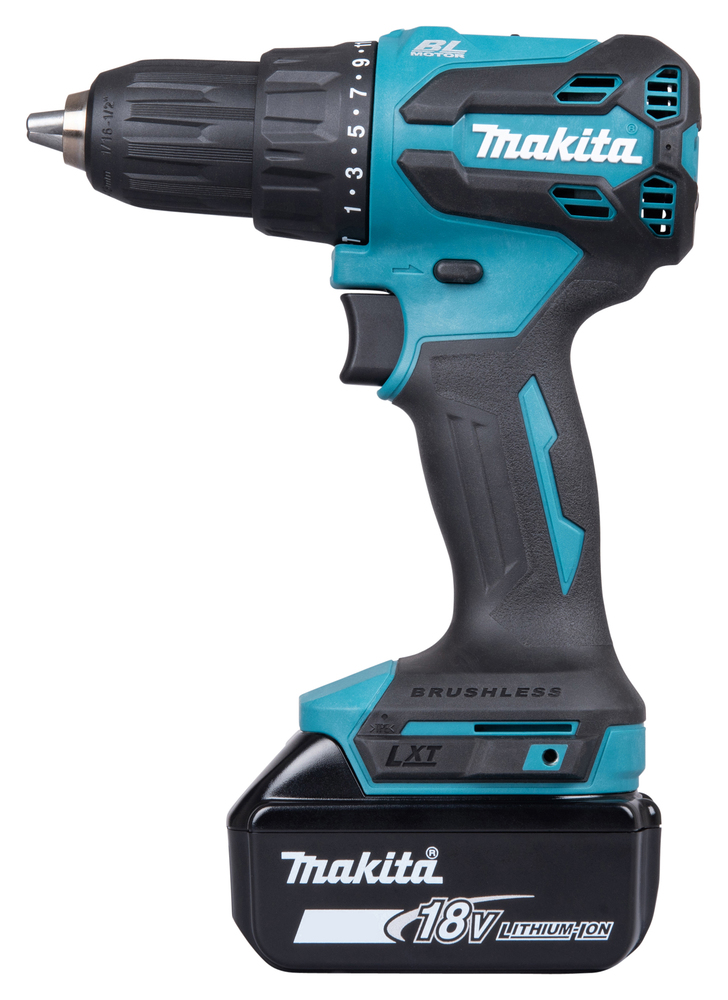

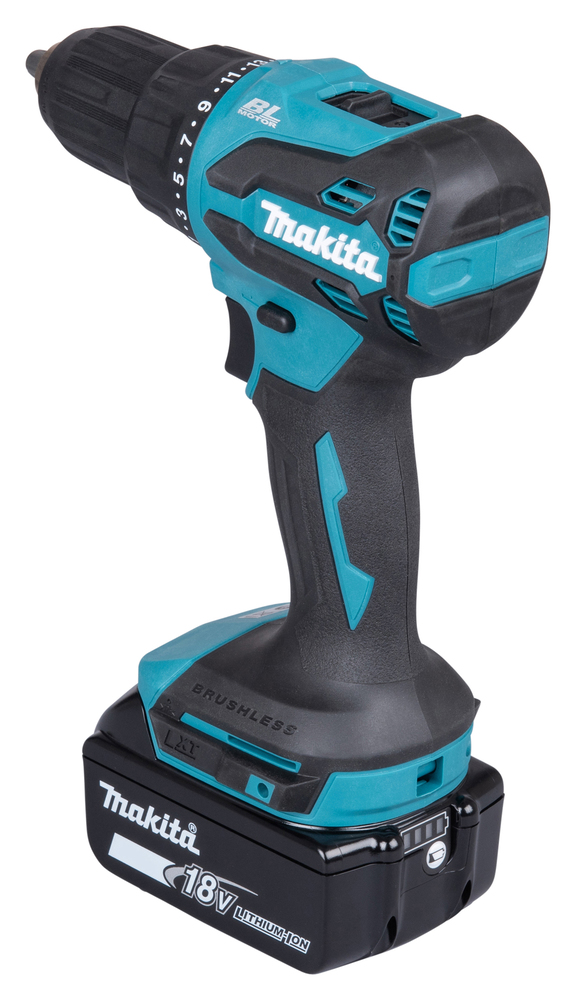

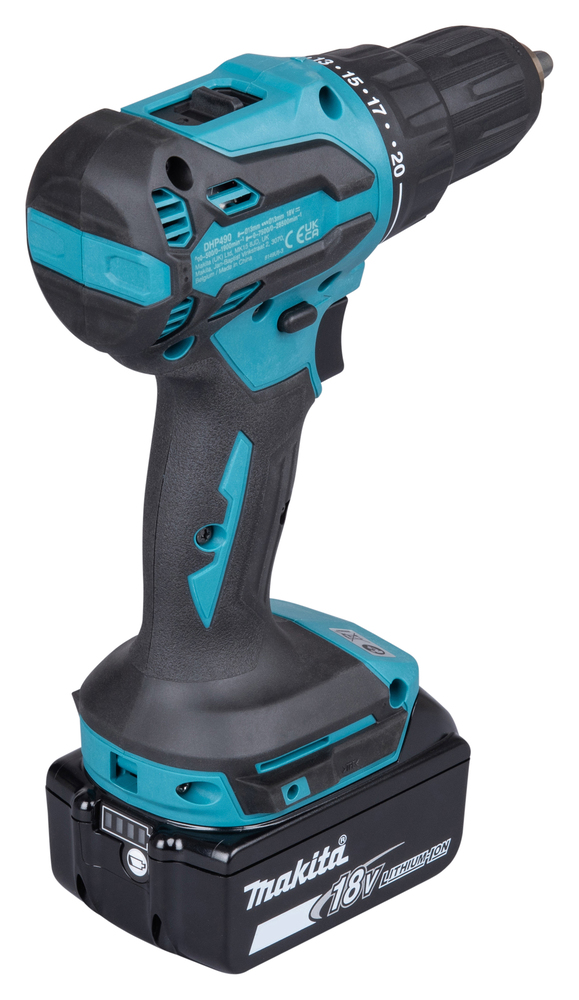

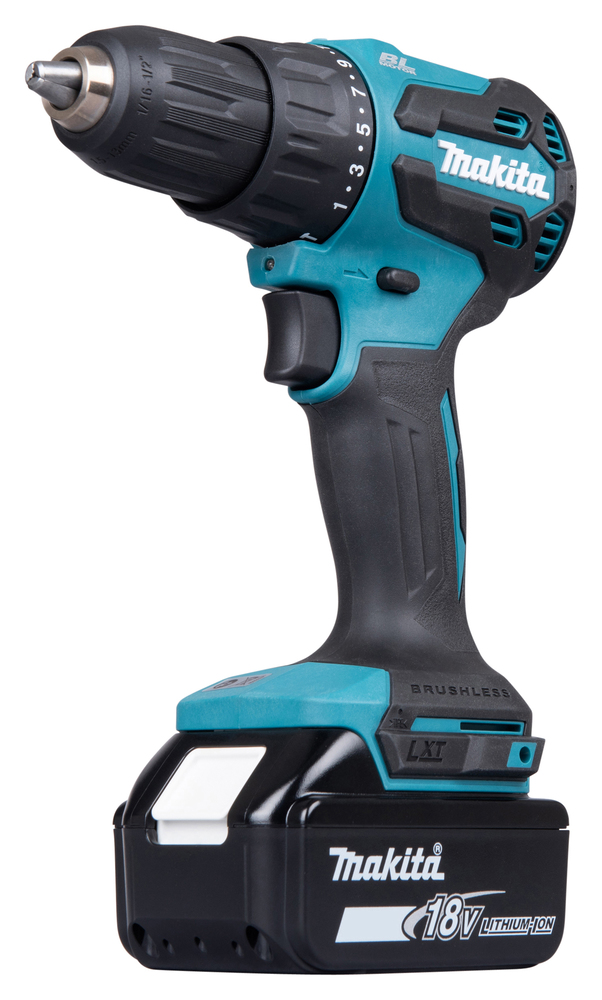

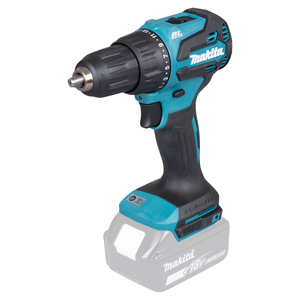

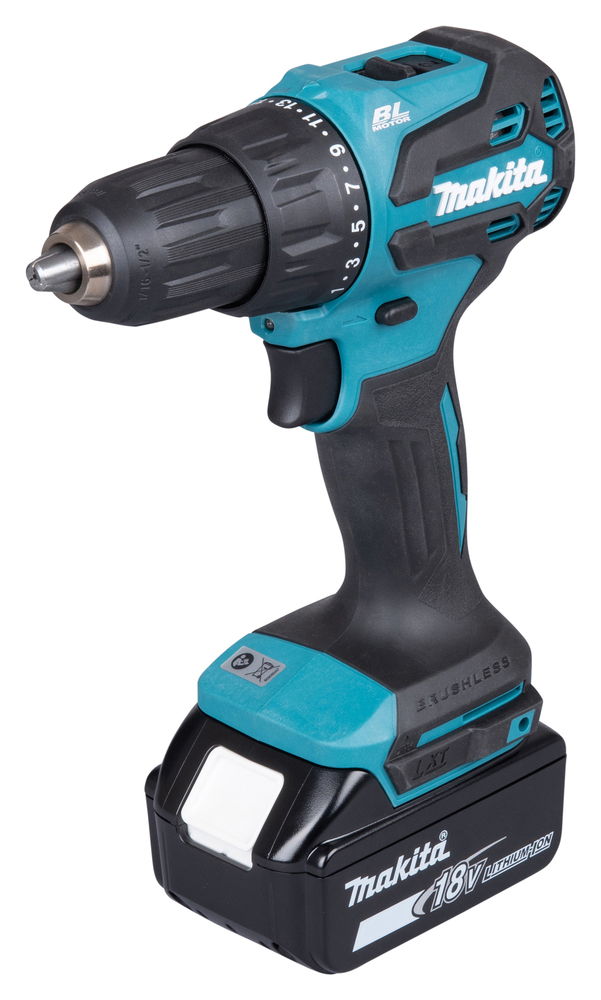

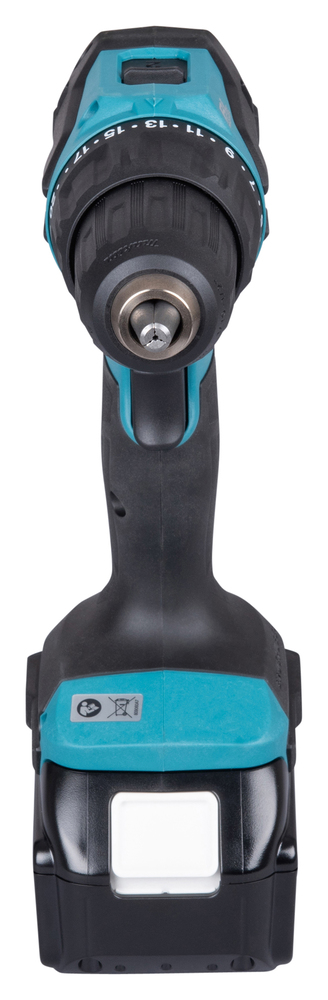

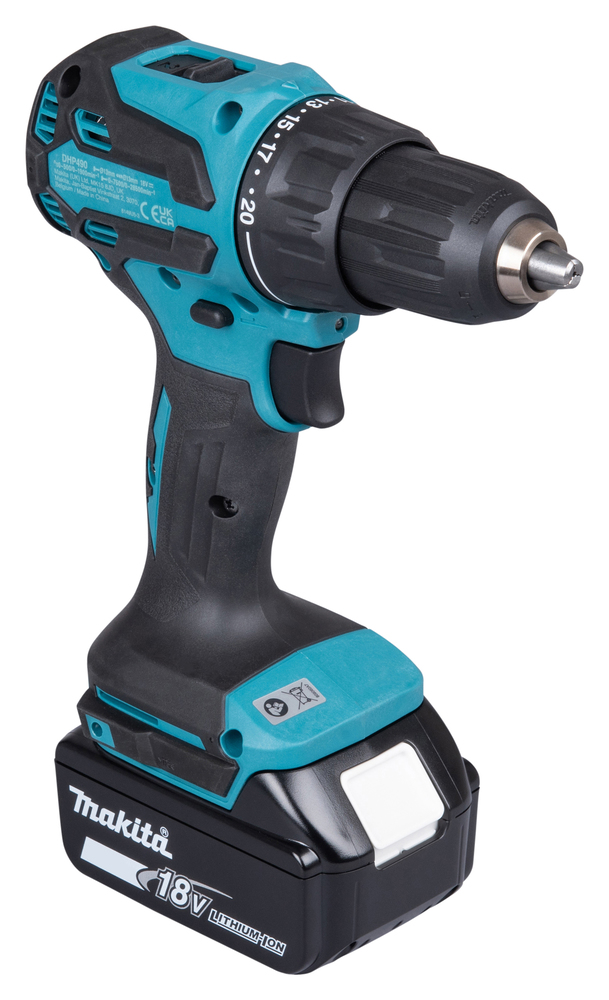

18V Combi Drill Brushless LXT®

Technical specifications

Nominal Battery Voltage
18 V
Voltage LXT
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion)
Li-ion
Brushless Motor

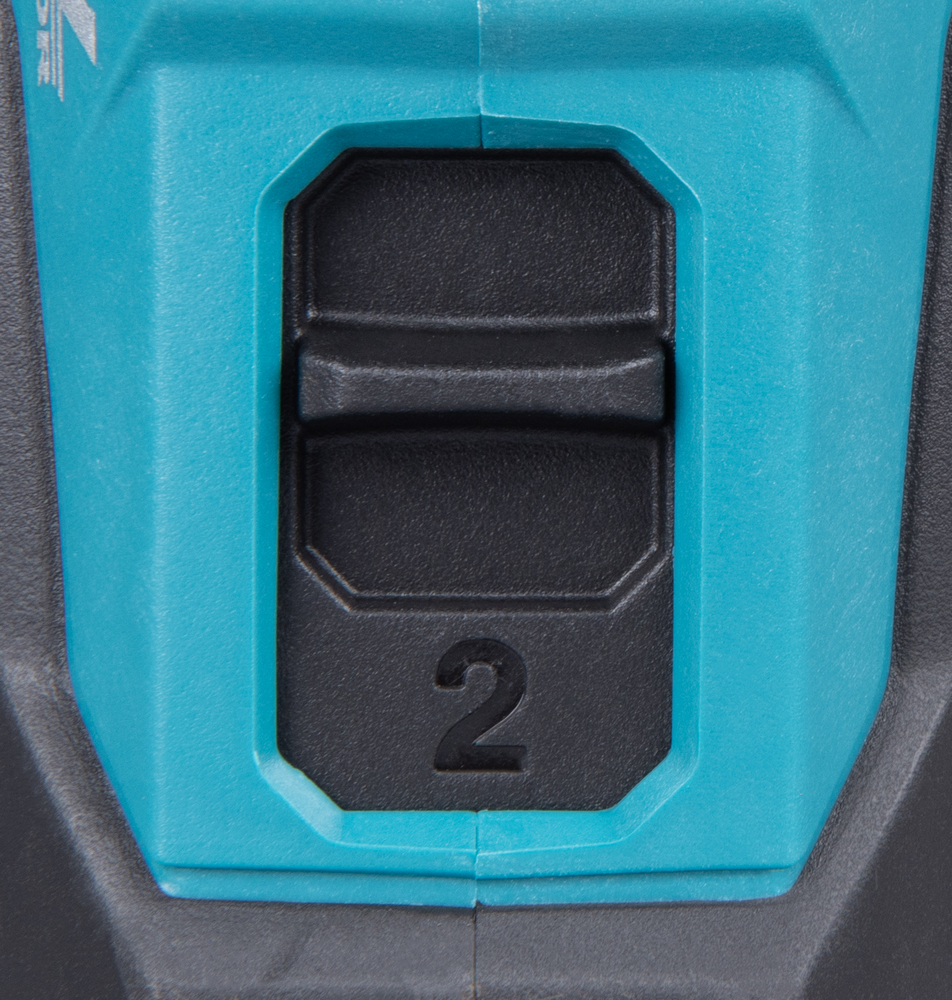

No load speed
0 - 500 / 1900 min⁻¹
Max. fastening torque Hard/Soft
50 / 27 Nm
Max Torque
65 Nm

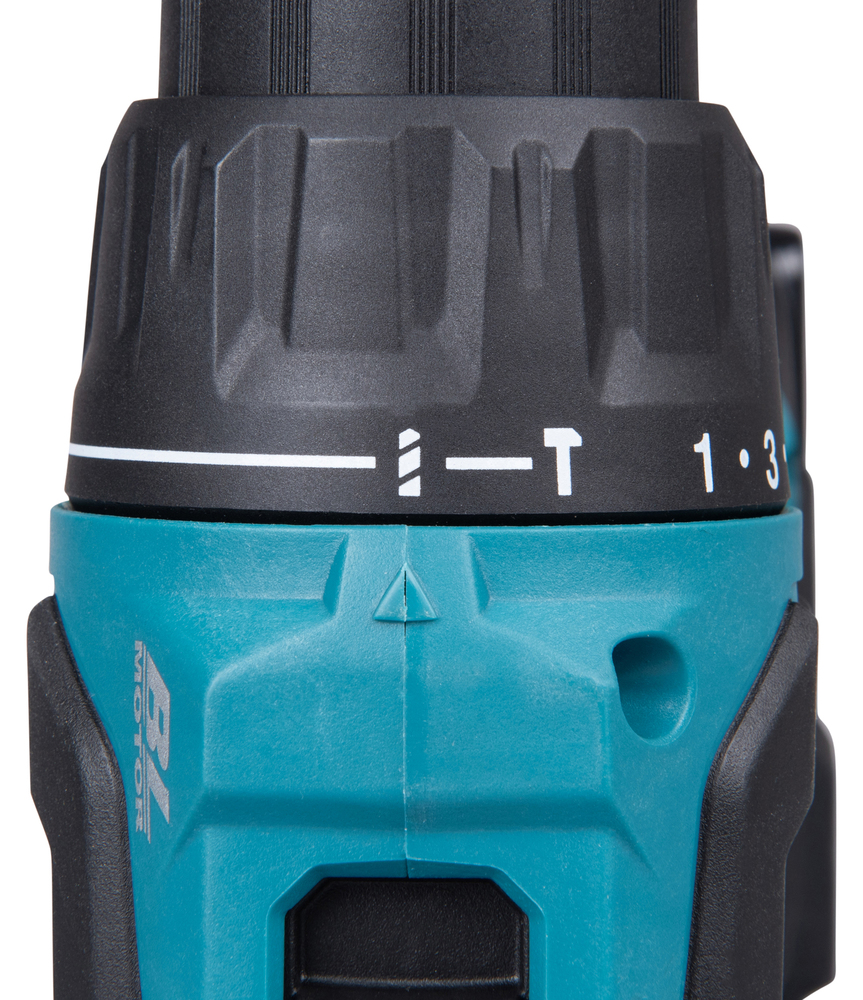

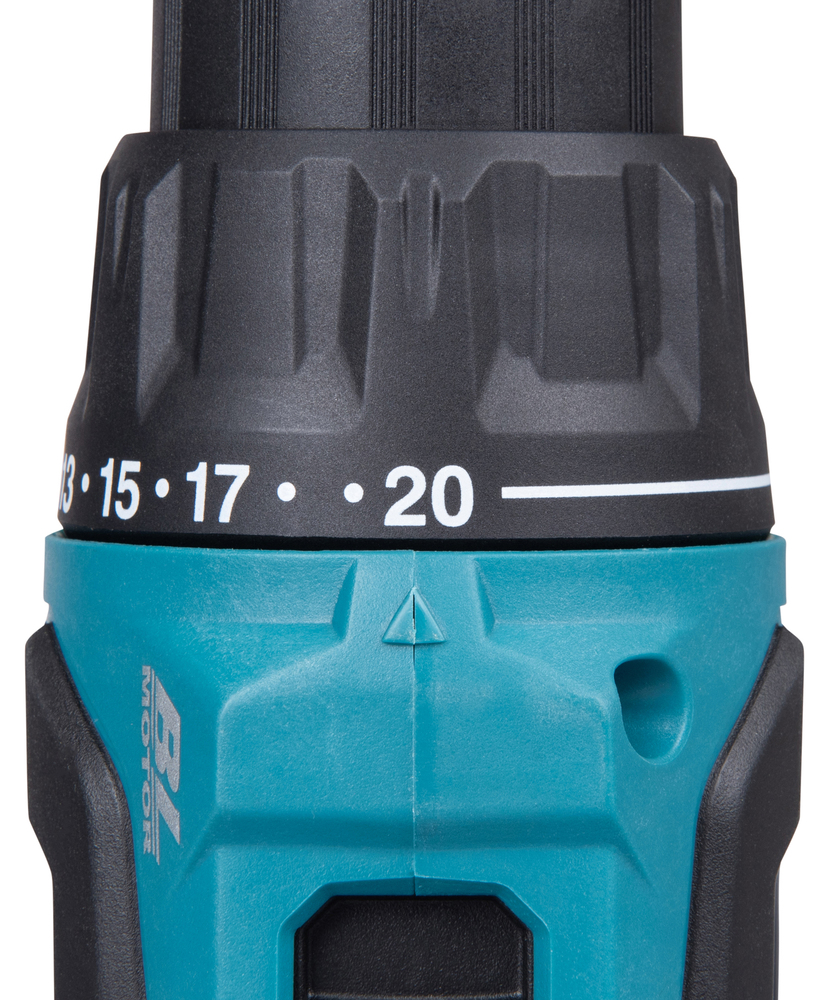

Torque setting
20
Impacts per Minute (IPM)
0 - 7500 / 28500 min⁻¹
Max. Drilling Diameter in Wood
38 mm

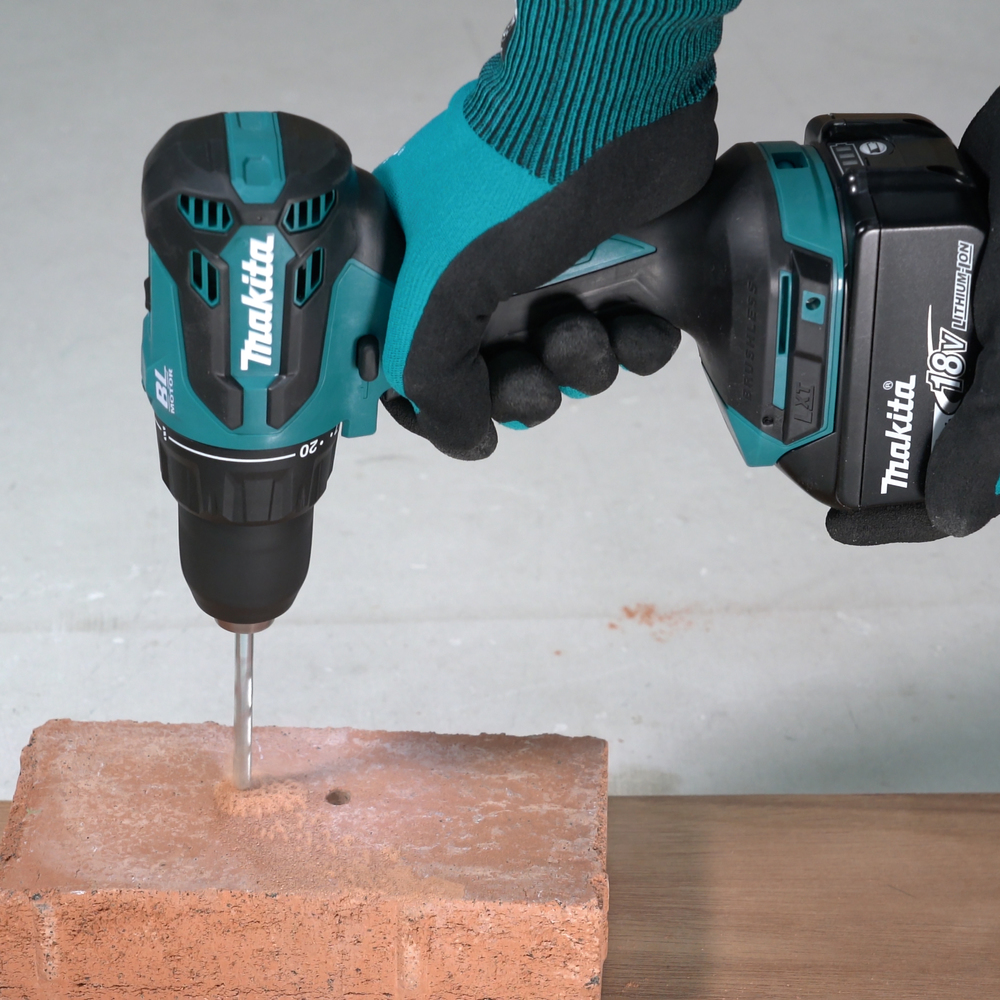

Max. Drilling Diameter in Masonry
13 mm
Max. Drilling Diameter in Steel
13 mm
Drilling Capacity Wood (Auger Bit)
38 mm
Drilling Capacity Wood (Self-feed bit)
38 mm
Drilling Capacity Flat bit
40 mm
Drilling Capacity Hole Saw
51 mm
Driving Shank
1/2"-20UNF "

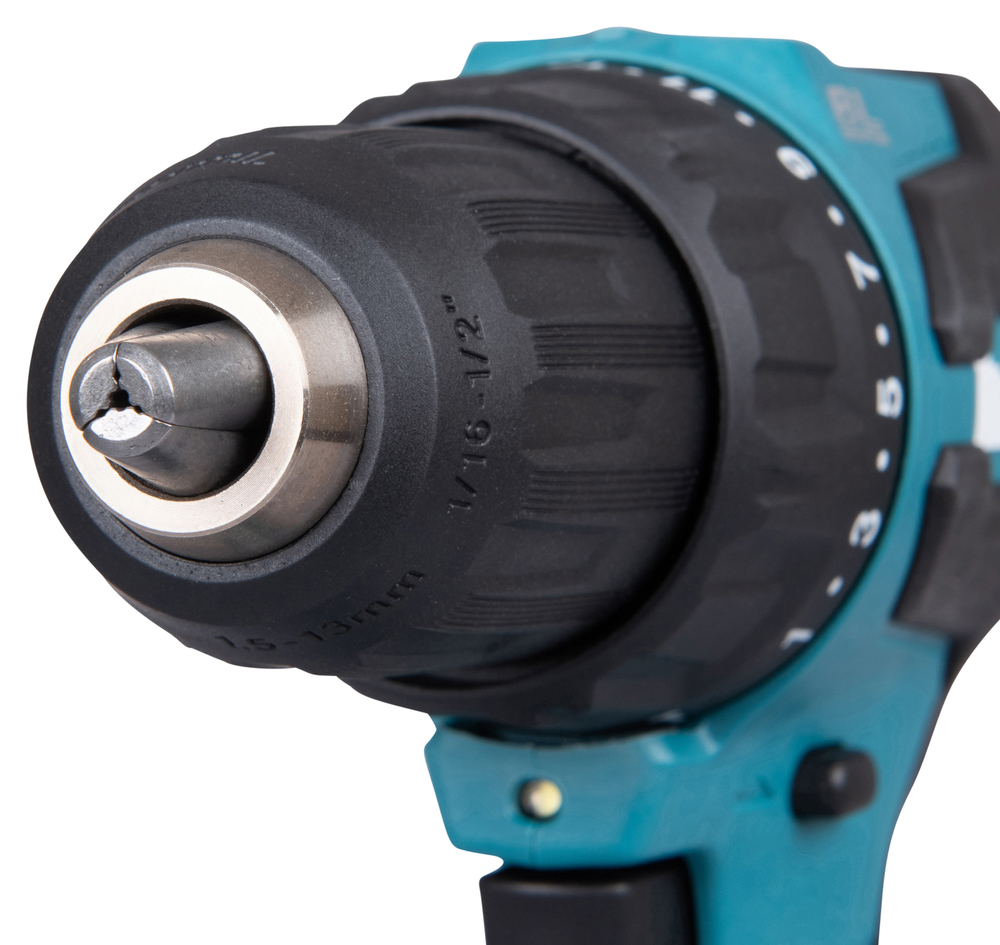

Drill Chuck Capacity
1,5 - 13 mm
Electronic brake
Vibration Level, Drilling into metal
≤ 2,5 m/s²
Vibration Uncertainty (K Factor), Drilling into metal
1,5 m/s²
Vibration Level, Impact Drilling into Concrete
8,1 m/s²
Vibration Uncertainty (K Factor), Impact Drilling into Concrete
1,5 m/s²
Sound Power Level (L_WA)
96 dB(A)
Sound Pressure Level (L_pA)
88 dB(A)
Noise Uncertainty (K Factor)
3 dB(A)
Product Dimensions (L x W x H):
172 x 81 x 255 mm

Product dimensions are stated with a battery / batteries, if they affect the overall dimensions of the product.


- CXT® machines with 2,0Ah batteries
- LXT® machines with 6,0Ah batteries
- XGT® machines with 4,0Ah batteries
Tool weight with battery
1,4 - 1,7 kg
Product net weight
1,0 kg
