18V Drill Driver Brushless LXT
DDF49065 Nm, 0 – 1 900 min⁻¹

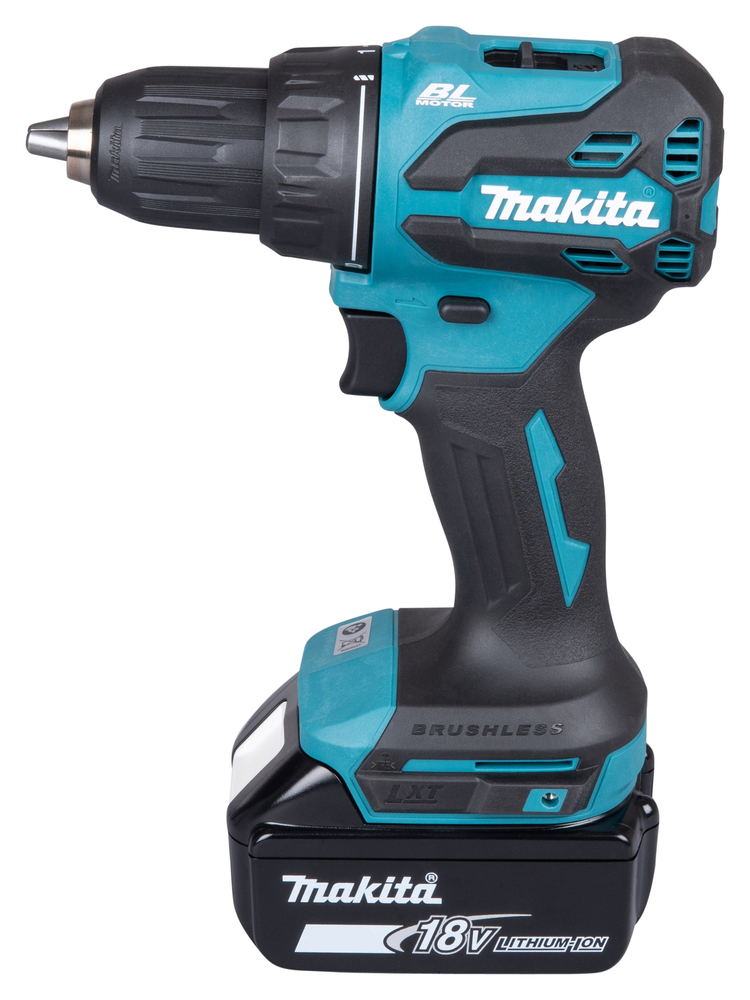

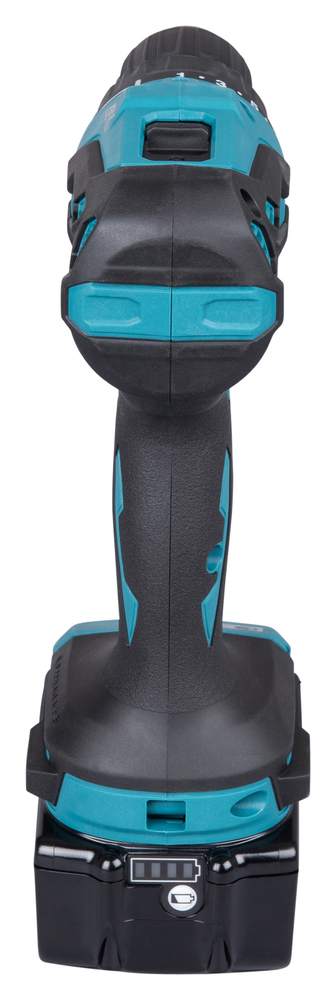

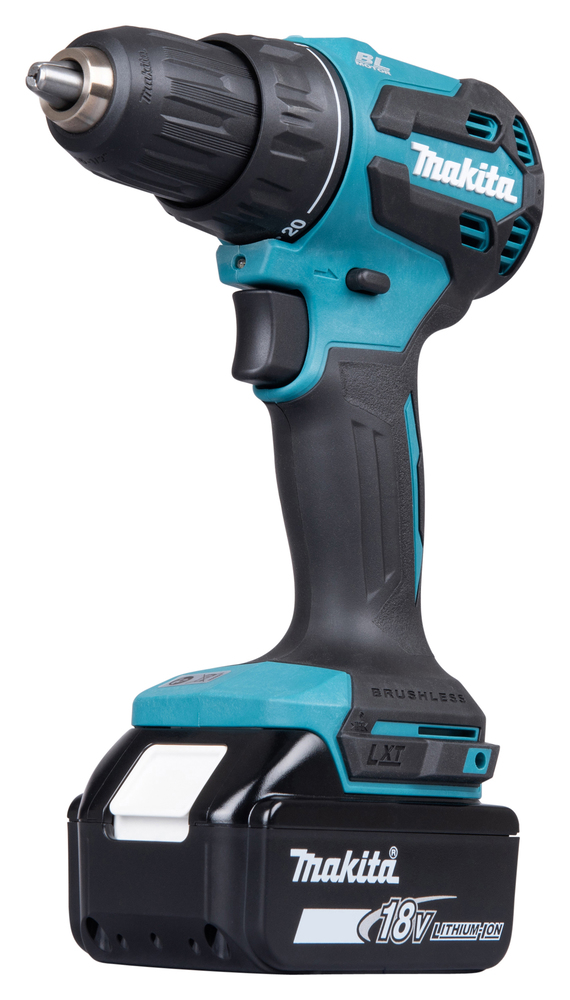

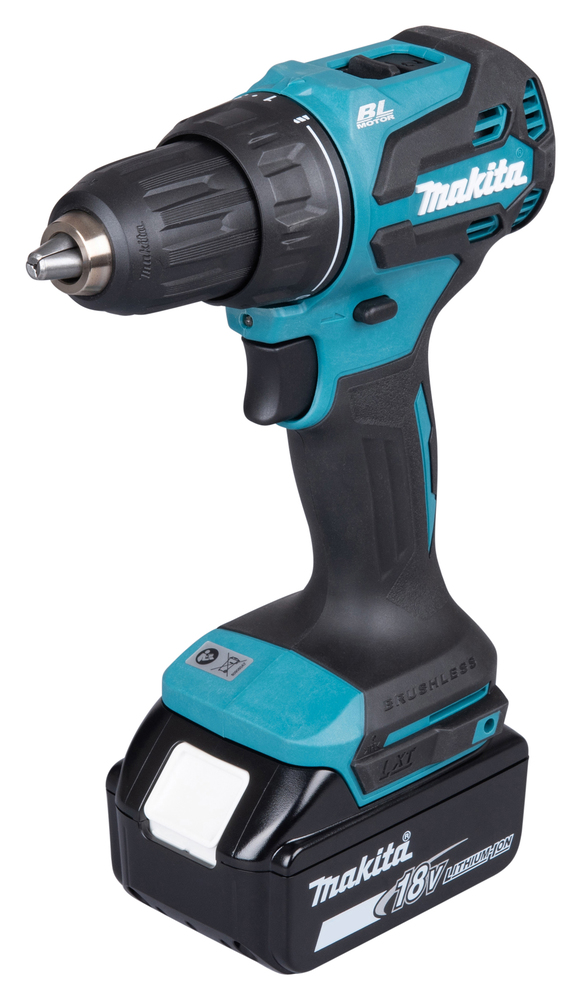

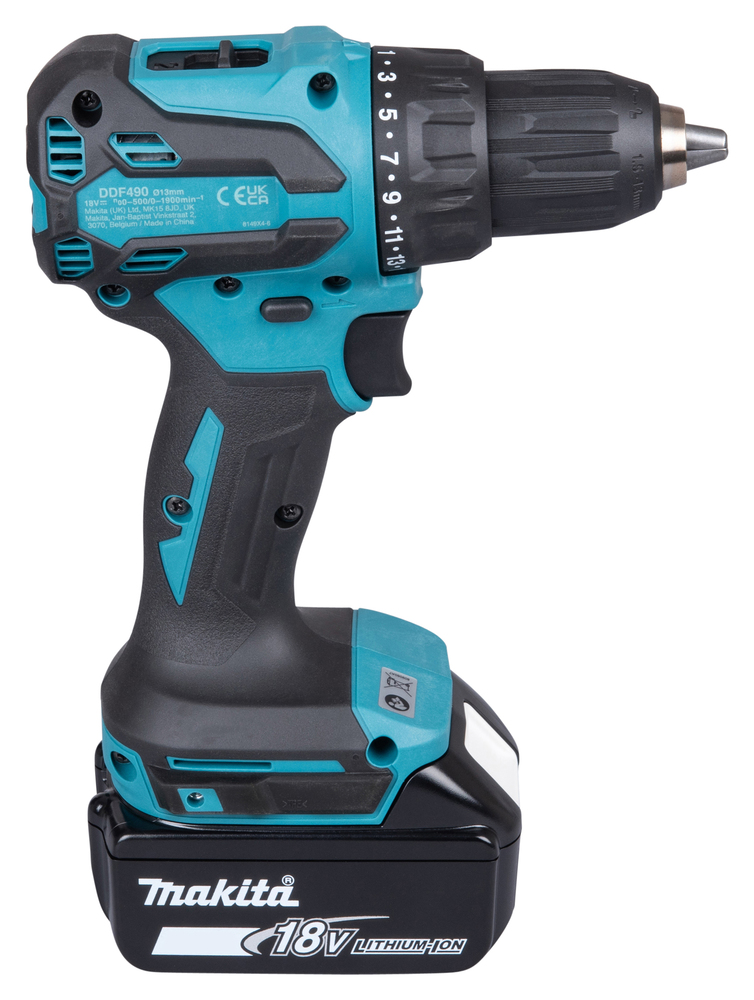

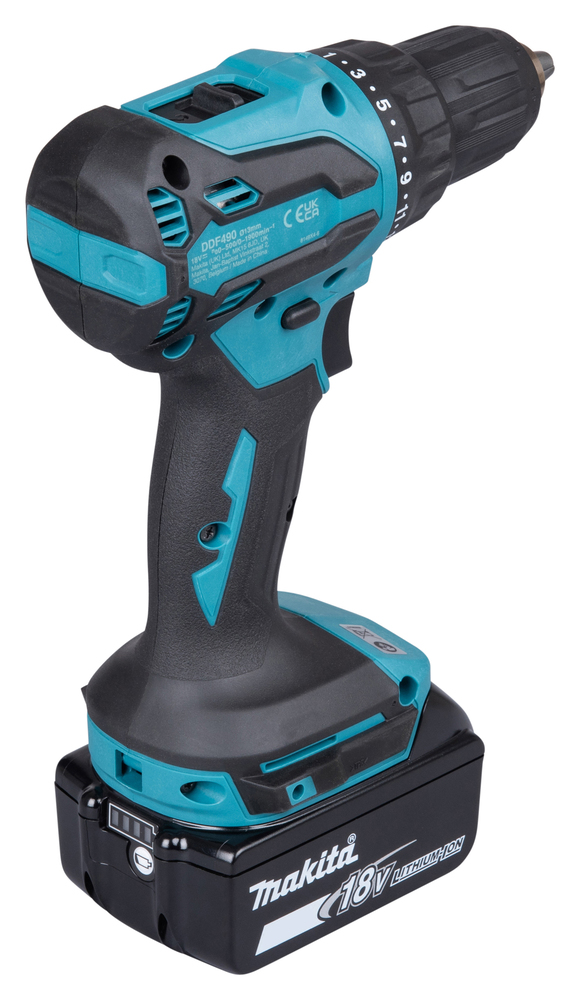

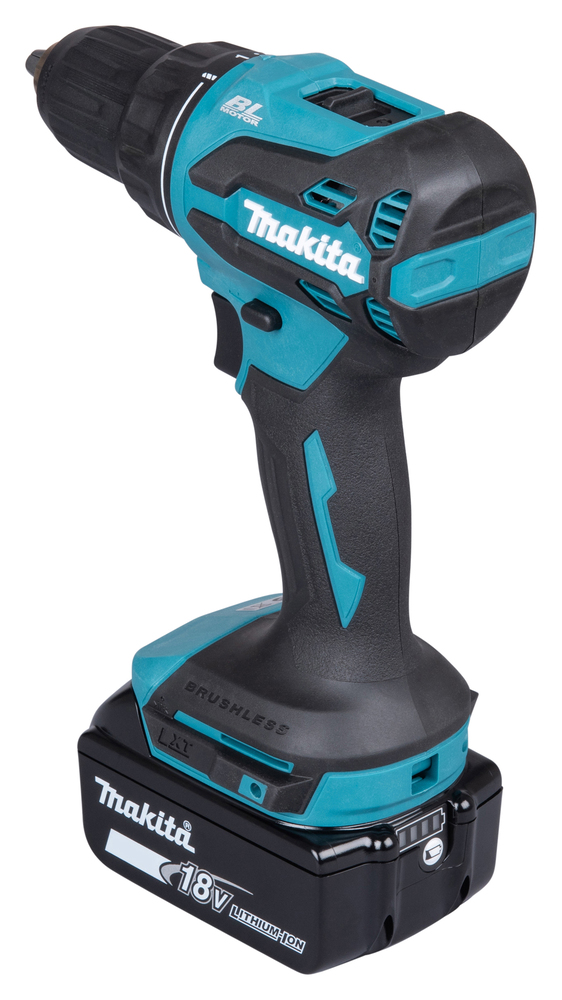

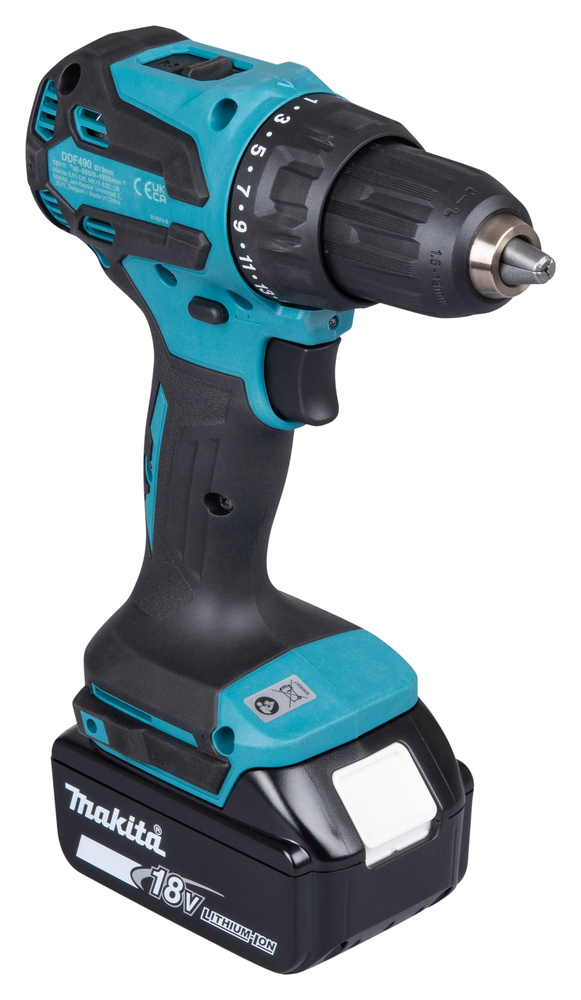

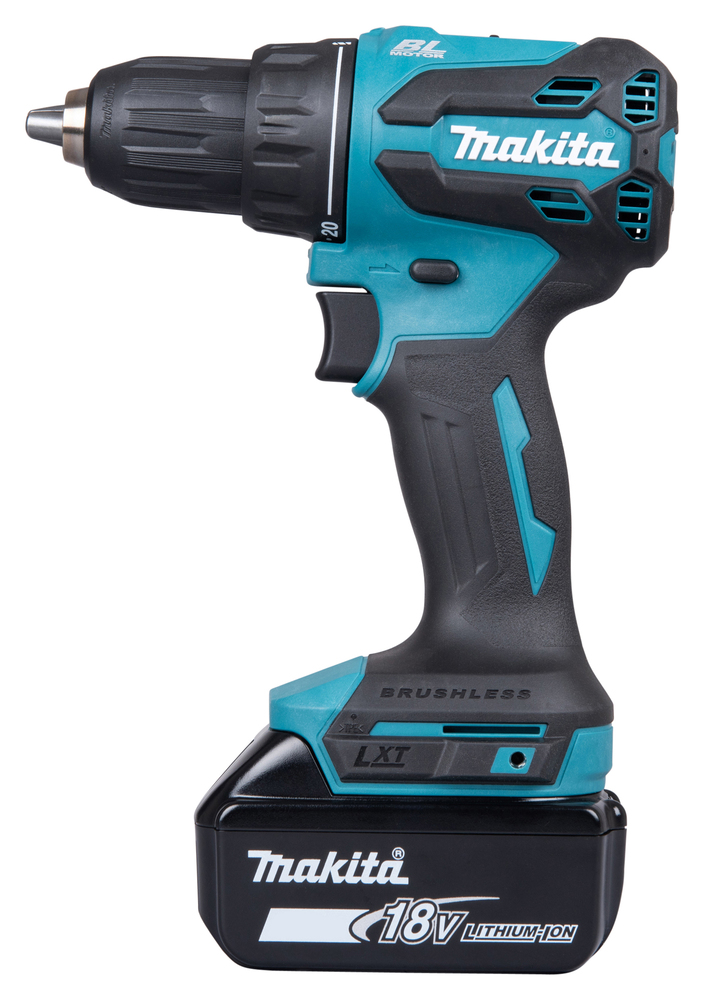

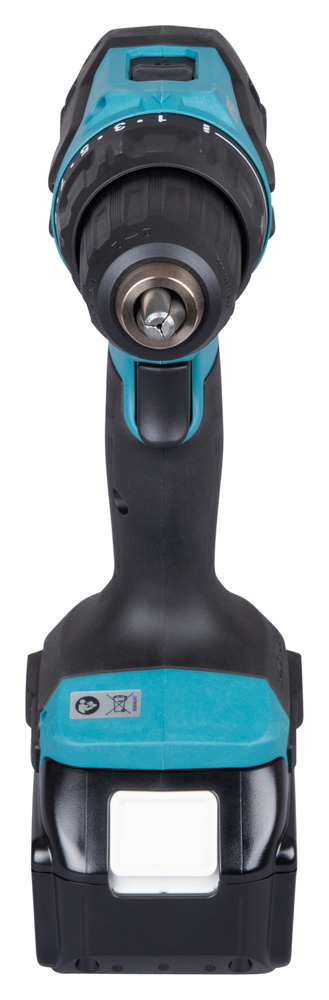

Model DDF490 is a Drill Driver powered by an 18V LXT Li-Ion battery
This model ensures sufficient torque by adopting a Brushless Motor is lightweight and compact, easy to handle even in narrow spaces. Features and Benefits:Max.torque of 65Nm Mechanical 2 speed Electric brake Variable speed control by trigger
- Available version(s)
- General
- Technical info
- Related Products
- Parts diagram
- Dust Extraction
- Additional info
- Support
Available version(s)
1 Available version
DDF490Z
18V Drill Driver Brushless LXT®
Model DDF490 is a Drill Driver powered by an 18V LXT Li-Ion battery
General
User benefits
- Keyless chuck for easy bit installation and removal
- eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
- Reversing switch is conveniently located
- Electric brake for maximum productivity and increased operator safety
- Built-in LED light with pre-glow and afterglow functions illuminates the work area
- Battery protection system automatically shuts off power when the battery level is low
Technical info
Technical specifications
-
Nominal Battery Voltage18 V
-
Voltage LXT
-
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion)Li-ion
-
Brushless Motor
-
No load speed0 - 500 / 0 - 1900 min⁻¹
-
Max. fastening torque Hard/Soft50 / 27 Nm
-
Max Torque65 Nm
-
Torque setting20
-

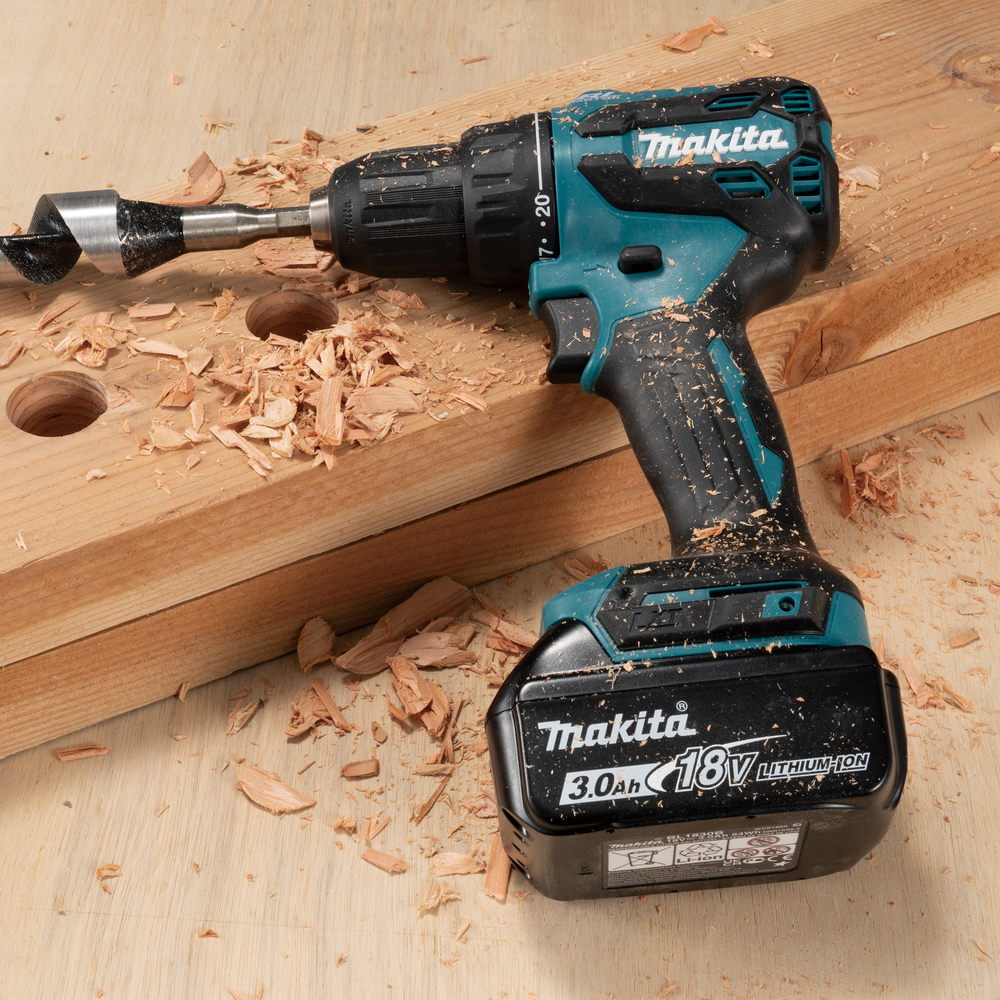

Max. Drilling Diameter in Wood38 mm
-
Max. Drilling Diameter in Steel13 mm
-
Driving Shank1/2"-20UNF "
-
Drill Chuck Capacity1,5 - 13 mm
-
Drilling Capacity Wood (Self-feed bit)38 mm
-
Vibration Level, Drilling into metal≤ 2,5 m/s²
-
Vibration Uncertainty (K Factor), Drilling into metal1,5 m/s²
-
Sound Pressure Level (LpA)78 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Product Dimensions (L x W x H):167 x 81 x 255 mmProduct dimensions are stated with a battery / batteries, if they affect the overall dimensions of the product.- CXT® machines with 2,0Ah batteries- LXT® machines with 6,0Ah batteries- XGT® machines with 4,0Ah batteries
-
Tool weight with battery1,4 - 1,7 kg
-
Product net weight1,0 kg
Symbols:
Variable Speed
Brake
Reversing
Mechanical 2-Speed
Keyless chuck
Torque adjustment x20
Built-in Job Light
