Next Generation Combination Hammer
Combination Hammer XGT® 40V Max

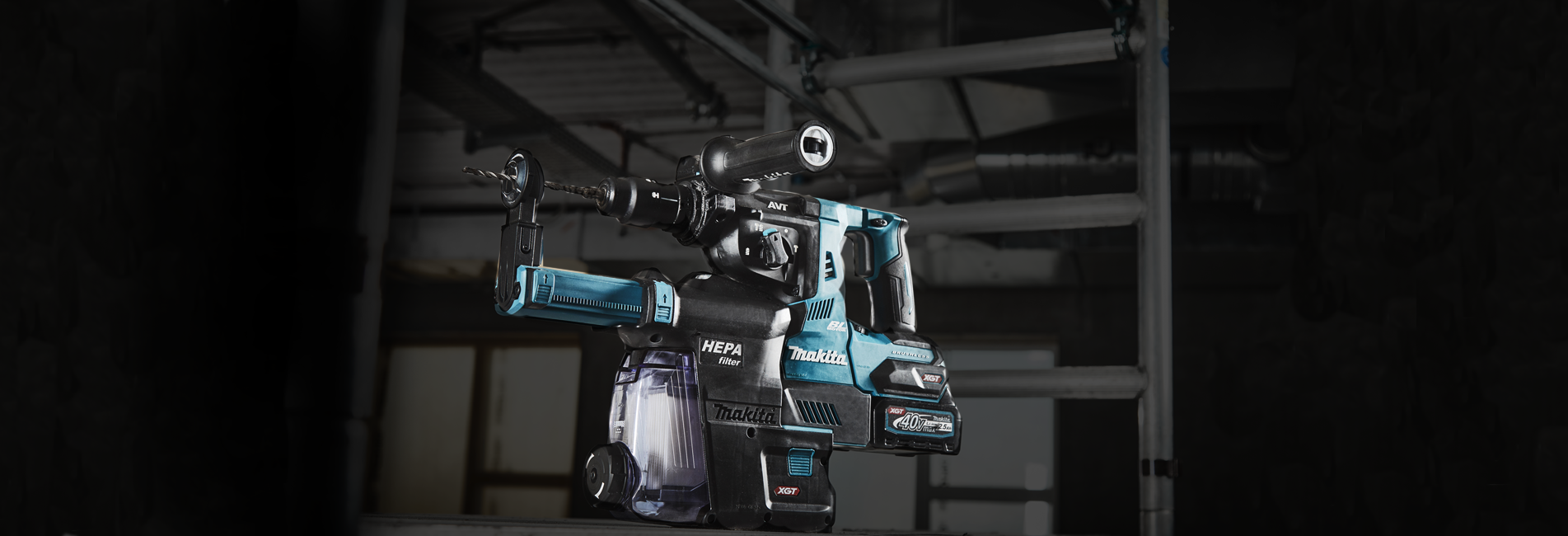

Our new and efficient combination hammer, the HR004G, delivers high power for professional work. The tool balance of this lightweight combi hammer has been designed for increased operability and is equipped with Anti-Vibration Technology (AVT).
The machine is also equipped with a quick change chuck and anti-vibration grip - a counterweight mechanism and a vibration absorbing handle to reduce vibration. The machine can also be connected to the DX14 dust extractor system.
Powerful Yet Easy To Operate
HR004G is a powerful and efficient tool for demanding applications. The machine has 3-mode operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only". Constant speed control automatically applies additional power to the motor to maintain speed under load.
HR004G is equipped with AVT technology which reduces vibration and keeps it at a safe level while minimising operator fatigue. A one touch sliding chuck enables quick and easy bit changes. Whilst the variable speed trigger allows the operator to adjust speed based on materials or application.
High Power And Efficiency
Work amount on a full battery BL4025 (2.5Ah) charge
Drilled holes a depth of 60mm (2-3/8") with ø12.5mm bit
About 120 pcs
Combination Hammer XGT® 40V Max
Efficient and durable combination hammer for professional use. 3-mode operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only". Constant speed control automatically applies additional power to the motor to maintain speed under load. Twin LED lights with preglow and afterglow functions illuminate drilling surface for more productivity in low light applications.
FEATURES AND TECHNICAL DATA
.png)

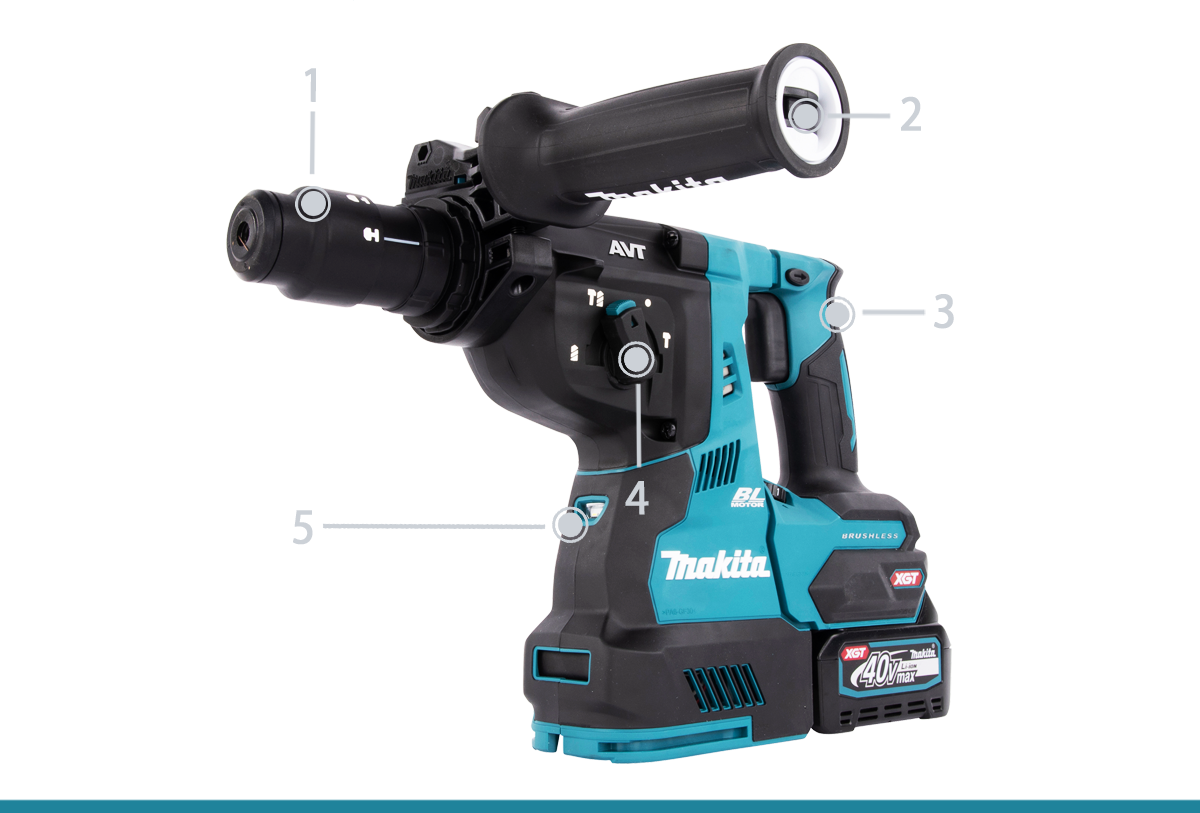

Features
1. Quick change drill chuck
2. Anti-vibration grip
3. Vibration absorbing handle
4. 3 modes: "Rotation Only", "Hammering with Rotation" and "Hammering Only".
5. Twin LED job light
HR004G can be equipped with DX14 Dust extraction System
Technical Specifications
Impact Energy: EPTA-Procedure 05/2009: 2.9 J
Capacity: Concrete / Steel / Wood / Core Bit /
Diamond Core Bit (Dry Type): 28 / 13 / 32 / 54 / 65 mm
Blows Per Minute (BPM): 0 - 5,000
No Load Speed (RPM): 0 - 980
Chuck Capacity: 1.5 - 13 mm
Sound Pressure Level: 93 dB(A)
Sound Power Level: 104 dB(A)
Dimensions (L x W x H):
w/ BL4025: 389x102x232 mm
w/ BL4040: 404x102x238 mm
Weight with battery: 4,0 - 4,5 kg
