CORDLESS RIVET GUN DRV150
Designed for industry applications
HIGH SPEED RIVETING - EVEN IN TIGHT SPACES
DRV150 delivers high speed performance in all circumstances. Its jaw case and short center height allow for tight space operations such as close-to-wall riveting. A wide range of nose pieces and jaw pushers make DRV150 compatible with various sizes of blind rivets.
DRV150 also has a rivet holding mechanism. Once a rivet is installed, it does not drop out even when the tool is directed downward. The amount of spent mandrels can be checked easily because of the transparent mandrel container.
FEATURES

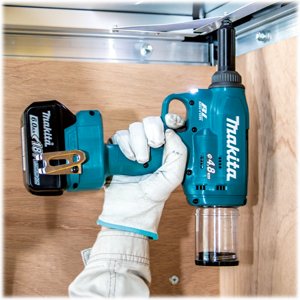

Jaw case designed for tight spaces

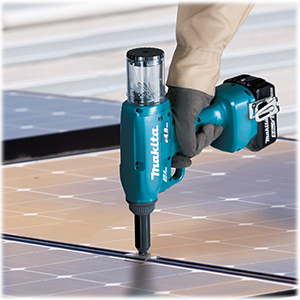

Rivet holding mechanism

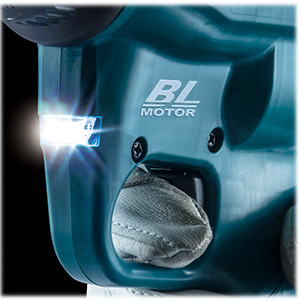

Twin LED job light

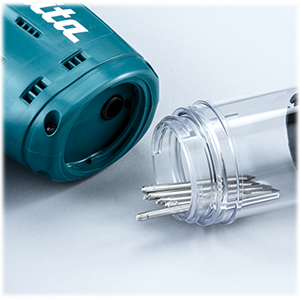

Transparent container for spent mandrels

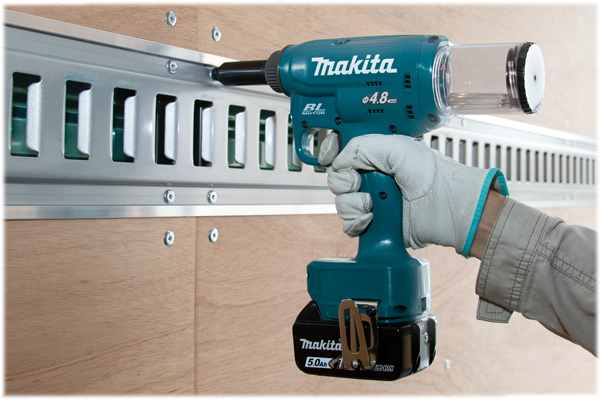

PERFORMANCE
Work amount on a full battery charge (approx):
2,300 rivets
Model: DRV150
Mandrel diameter: ø4,8 mm
Battery: BL1850B (5.0Ah)
DRV250: 2000 rivets (5.0 Ah)

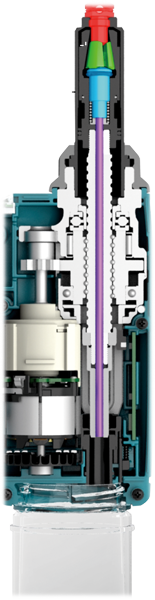

TECHNICAL DATA
DRV150
Max pulling force:10 kN
Length of stroke: 25 mm (1")
Center height: 26 mm (1")
Sound pressure level:75 dB (A)
Dimensions (L x W x H): 310 x 80 x 270 mm
Net weight: 1.9 - 2.2 kg
DRV250
Max pulling force: 20 kN
Length of stroke: 30 mm (1-3/16")
Center height: 26 mm (1")
Sound pressure level: 74 dB (A)
Dimensions (L x W x H): 320 x 80 x 270 mm
Net weight: 2.1. - 2.4 kg

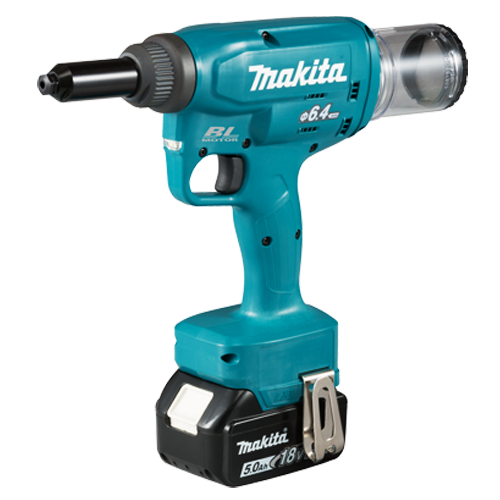

VERSIONS
Rivet Gun LXT®
DRV250
18V
A cordless heavy duty tool for 4,8 and 6,4 mm rivets. The tool is specifically designed for industrial applications and it delivers a powerful pulling force of 20 kN with a stroke length of 30mm.
TO PRODUCT PAGE

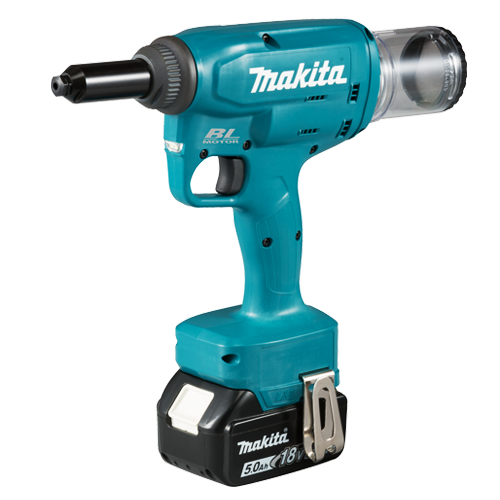

Rivet Gun LXT®
DRV150
18V
DRV150 delivers high speed performance in all circumstances. Its jaw case and short center height allow for tight space operations such as close-to-wall riveting.
